In the rapidly evolving era of electronics, Printed Circuit Boards (PCBs) are integral hardware components that form the foundation for almost all electronic devices. However, the process from design to a fully assembled PCB is extremely expensive and is based on an incredibly high number of factors. From the complexity of design to material selection, all of these play an important part in deciding the end cost. A detailed understanding of these factors can be used to make informed choices to balance manufacturing needs against cost and engineering requirements.
Design Complexity
One of the top factors contributing to PCB expense is design complexity. As the circuit becomes more complex, the components needed are larger, and procurement and assembly cost rises accordingly. Complex boards might require more PCB area to fit more components and traces. They may also call for additional layers, which makes it complex to produce and costs more. More sophisticated designs entail additional processes such as laser drilling and specialized tools, which is costly once more.
PCB Size and Material
The size and shape of a PCB are fundamental cost drivers. Large PCBs do need more substrate material and copper foil, which contributes to the material cost. Larger boards also have more complex manufacturing processes to be performed on them and involve large machines, increasing manufacturing overhead. Some of this cost can however be cushioned by effective utilization of material if the layout is optimized. Larger boards alone can reduce waste and utilize resources more effectively when the layout is optimized.
Layer Count
The number of layers in a PCB has a significant effect on material consumption and manufacturing complexity. With each additional layer, there are more substrate materials, copper foil, and insulation, which adds to material cost. In multi-layer boards, operations such as lamination of copper foil layers, drilling, and inner circuit alignment become inevitable, which increases manufacturing complexity and cost. Typically, another 40% for going from two to four layers and an incremental percentage per set of layers due to additional quality checks and alignment limits.
Substrate Material
The choice of appropriate substrate material plays an important role in determining the cost of PCBs. Even though FR-4 fiberglass composite materials are economical, special or high-frequency applications can demand higher-priced materials like PTFE. There is always a price per performance for any special feature material, particularly under abnormal circumstances like high-frequency or heat usage. Furthermore, the thickness of the material may also play a role as it requires more material and resources.
Trace Width and Spacing
Trace width and spacing directly affect the amount of precision needed in manufacturing and thus the cost. Greater spacing and larger trace widths demand less advanced equipment and process, hence less effort and time in manufacturing. This need for precision can also translate into more higher yield loss since defects are more likely to occur when manufacturing processes are pushed to the limit. Yield loss also directly contributes to higher production costs from the added effort in reprocessing or scrapping defective products.
Delivery Time
Given today's competitive marketplace, urgency in delivery can also go a long way in driving up the cost of PCBs. Short lead time may result in overtime work, additional shifts, and advance scheduling of manufacturing. These strategies come with higher costs, generally passed on to the buyer. Additionally, there can be added use of expensive logistics such as air freight or express courier in rush shipping for the sake of fitting into constricted delivery deadlines, further adding to costs.
Drill Hole Number and Size
The financial implications of the size and number of drill holes are considerable. It requires high-precision machinery and more processing time to create smaller drill holes, an additional expense. Additionally, higher numbers of drill holes also increase production complexity, which means more processing time and manpower, an additional expense.
Surface Treatment
The selection of surface finish influences the PCB costs. Some surface finishes, like HASL (Hot Air Solder Leveling), are inexpensive, whereas others, e.g., ENIG (Electroless Nickel Immersion Gold), are expensive but with better performance and reliability. The selection of surface finish should compromise between needs for performance and financial resources to meet the cost impact optimally.

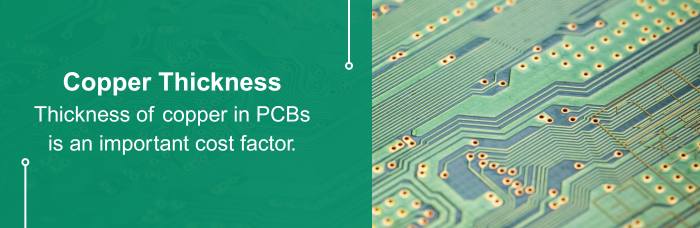

Copper Thickness
Thickness of copper in PCBs is an important cost factor. Thicker, sicker copper not only carries a larger base cost of material but an accompanying manufacturing subtlety also. Stable machines that can machine thicker layers require, besides extended etch time, more material and manpower cost. Labor in some cases would have a cost impact as well because of the extra weight involved and the ensuing heavier shipping or logistics cost.
Technological Needs
Certain technological needs, such as controlled impedance or tight tolerance, can prove to be costly. These can probably necessitate rigorous manufacturing procedures and acute inspections to ensure alignment with high-quality standards, which are both highly time- and cost-intensive.
Cost-control Strategies
So that costs will not be eliminated at the cost of quality, several strategies could be implemented:
Simplify Circuit Design: Reducing component number and complexity reduces purchase and assembly expense. Simple design can even permit fewer layers and, therefore, lower material and process expense.
Reduce Layer Count: Reducing layer count lowers material usage, as well as manufacturing complexity, and saves expenses.
Use Standard Components: Relatively easy to purchase standard components lower cost. Standard components cost less and are easier to obtain and procure and manage in a supply chain, further simplifying supply chain administration.
Keep Minimum PCB Size and Shape: Smaller boards of simple shapes require less material and process time, reducing manufacturing cost.
Obey Design for Manufacturability (DFM) Principles: Using DFM principles in the design ensures PCBs are as economical and efficient to produce as possible. DFM principles are aimed at avoiding errors, manufacturing steps, and special process requests.
Last but not least, understanding the wide range of factors impacting cost in PCB assembly and manufacturing not only allows businesses to make informed decisions based on knowledge but also helps in tactfully balancing the financial constraints in relation to technical specifications. Complexity of design, selection of materials, and production timeline are all factors to consider when it comes to deciding on final price for PCBs. Through the application of robust cost-reduction techniques like reducing circuit complexity and reducing layer counts, companies can achieve their production goals without sacrificing quality or exceeding budgetary constraints.
