Panel Requirements for Assembly

Why Panelize

As we mentioned in article The Surprising Secret to Designing Combination Method of PCB Panels, panelization is a must-have with the consideration of PCB fabrication efficiency, reducing PCB assembly labor cost and quality control.

Panel Requirements for PCB Assembly

PCBCart does PCB Assembly panel production with min size 50*50mm, max size 310*410mm. We can manufacture circuit boards based on your panelized PCB file. If you only have single PCB file, we can help panelize design according to your specific demands, then manfuacture the boards. Feel free to send us a message if you need assistance in PCB Assembly panel, we'll react accordingly.


1. Panel with V-CUT/V-GROOVE

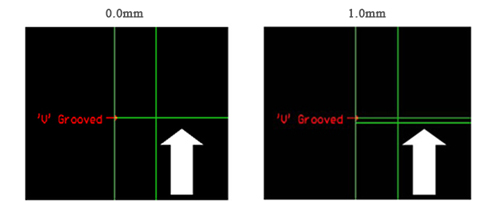

We require 0.0mm spacing between each unit for panel with V-cut, following image for your reference.


Panel with V-CUT/V-GROOVE | PCBCart


As the V-scoring could only go all through the whole board and no-stop, V-cut cannot be used for the panel with units of different size. Take the following panel for an example, we would recommend Tab-routing instead of V-cut.


Panel with V-CUT/V-GROOVE | PCBCart


2. Panel with TAB-ROUTE


For panel with Tab-route, we need 2.0mm spacing between each unit. We offer two options for tab-routing: Tab-Route with breaking holes and Tab-route with tabs.


• Tab-Route with breaking holes

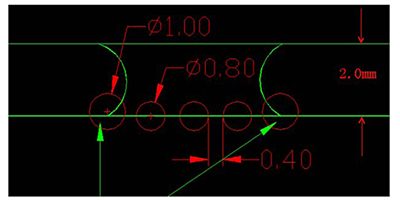

For this kind of Tab-route, we require breaking holes diameter be between 0.3mm-1.0mm, spacing between the breaking holes be ≥0.25mm, breaking holes number in each tab be around 5-6. See the following picture for an example.


Panel with TAB-ROUTE | PCBCart


• Tab-route with tabs, the width of tabs should be 1.0mm.


Panel with TAB-ROUTE | PCBCart


3. Panel with both V-CUT and ROUTE Fiducial


For panel with both V-cut and Route fiducial, we require 2.0mm spacing between each unit. Please refer the following image to design the panel.


Panel with both V-CUT and ROUTE Fiducial | PCBCart

Fiducial marks and mounting holes in panel

1. Fiducial marks


For each panel, we require at least 3 fiducial marks. Those marks should be placed in the middle of the tooling strips with the diameter at 1.0mm.

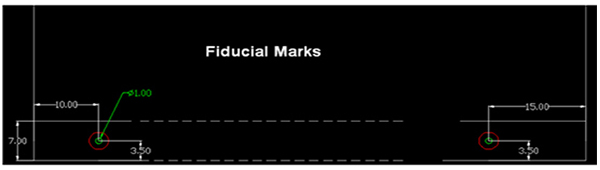

The fiducial marks on board's left should be 10.0mm away from the board edge, and the right ones should be 15.0mm away from the board's right edge. Following image is for your reference.


Fiducial marks | PCBCart

2. Mounting holes

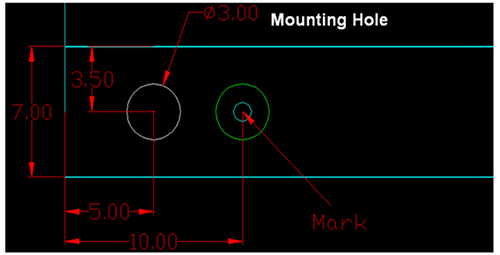

We would recommend diameter of mounting holes to be set at 3.0mm and the width of tooling strips at 7.0mm, and at least 5.0mm distance from the edge of the board. Check the image below for reference.


Mounting holes | PCBCart

Need more PCB design tips to take advantage of our assembly capabilities and lower your overall production cost and time? Check this article for practical solutions.
