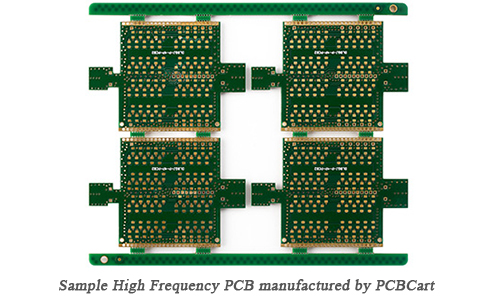

High Frequency PCB

High-Frequency PCB Advanced Circuits Specification

A high-frequency PCB can meet your needs when incorporating a special signal requirement into your electronic components and products. It offers a frequency range of 500MHz - 2GHz, making it ideally suited for high-speed designs, as well as radio frequency (RF), microwave and mobile applications. These higher transmission frequencies can also provide the faster signal flow rates that are a necessity in today's increasingly complex electronic switches and other components.


Request High Frequency PCB Manufacturing Price

A High-Frequency PCB Requires the Use of Specialized Materials

Special materials are required to achieve the high frequency provided by this type of printed circuit board - any changes in the Er value of these materials can affect the impedance of the board. Many PCB designers turn to Rogers dielectric material for its lower dielectric loss, reduced signal loss, lower cost of circuit fabrication and better suitability for fast-turnaround prototyping applications.


Apart from choosing the appropriate PCB material and determining the correct the value of the Er, designers should take parameter such as conductor width and spacing, substrate constant into consideration. These parameters must be exactly specified and implemented with the highest level of process control.

We're a High-Frequency PCB Manufacturer That Takes the Time to Assess Your Needs

PCBCart is an experienced full service PCB manufacturer who provides a reliable, superior-performing high-frequency PCB fab services.


High Frequency PCB by PCBCart


We manufacture high-frequency PCBs with frequency typically in the range from 500MHz to 2GHz. The following table shows some of our common-use materials for High-Frequency PCBs.


Material Dielectric Constant
RO4350B 3.48±0.05@10 GHz
RO4003C 3.38±@10 GHz
Ro3003 3.00±0.04@10 GHz
Ro3010 10.2±0.03@10 GHz
RT5880 2.20±0.02@10 GHz

Check our capabilities by viewing the table found below:


Feature Capability
Quality Grade Standard IPC 2
Number of Layers 2 - 24layers
Order Quantity 1pc - 10000+pcs
Build Time 2days - 5weeks
Material RO4003C, RO4350B, Ro3003, Ro3010, RT5880
PP Rogers 4450F, Domestic-(25FR), Domestic-(RF-27), Domestic-(6700)
Board Size Min 6mm x 6mm | Max 457mm x 610mm
Board Thickness 0.4mm - 5.0mm
Copper Weight(Finished) 0.5oz - 2.oz
Min Tracing/Spacing 3mil/3mil
Solder Mask Sides As per the file
Solder Mask Color Green, White, Blue, Black, Red, Yellow
Silkscreen Sides As per the file
Silkscreen Color White, Black, Yellow
Surface Finish Electroless nickel/immersion gold (ENIG) - RoHS
Immersion silver - RoHS
Immersion tin - RoHS
Organic solderability preservatives - RoHS
Min Annular Ring 4mil
Min Drilling Hole Diameter 6mil
Impedance tolerance ±10%
Other Techniques Peelable solder mask
Gold fingers
Carbon oil
Countersink holes

Discuss your High Frequency PCB Project Today

For High Frequency PCB manufacturing price, please send your PCB file (Gerber format preferred | Preorder Checklist) & requirements using our Advanced PCB Order System, we'll quote at quickest speed.

Request High Frequency PCB Manufacturing Price

Wanna know our customizable high-frequency PCB solutions? Can't determine which PCB material is the best choice for your project? Require advanced specs which are not listed in the above table? Reach our engineers for practical solutions.
