In today's dynamic world of electronic design, the necessity for greater efficiency, reduced size, and dependability has made Ball Grid Arrays (BGAs) a favorite. These new-age packages are an integral component of the framework of printed circuit boards (PCBs), which constitute the underlying framework in most electronic devices. Being PCB design and content marketing professionals at PCBCart, we present this comprehensive guide to BGAs, discussing their construction, assembly procedure, advantages, disadvantages, and types.
A Ball Grid Array (BGA) is a surface mount technology (SMT) package used primarily for integrated circuits. Unlike conventional packages using leads, BGAs have an array of solder balls at the package bottom to connect with the PCB. The method is capable of maintaining higher component density and improved electrical performance, and hence BGAs are widely used for high-performance devices.

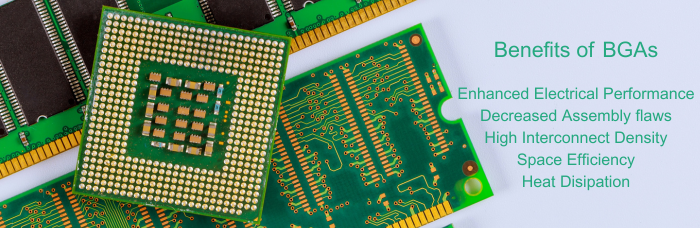

Benefits of BGAs
High Interconnect Density: BGAs have a higher interconnect density, providing the ability to support more input/output (I/O) ports. This characteristic is essential in achieving high-density circuits, especially in High-Density Interconnect (HDI) PCBs.
Space Efficiency: BGA assembly results in a minimal footprint on PCBs, making it possible to develop compact, efficient devices. Unlike conventional leaded components, their self-aligning solder balls simplify assembly.
Heat Disipation: Effective heat transmission from the chip is made possible by BGAs' superior thermal management and reduced thermal resistance. The equipment must operate steadily and without overheating.
Enhanced Electrical Performance: In order to provide steady performance in high-frequency applications, the low inductance package improves conductivity and lowers signal distortion.
Decreased Assembly flaws: BGA design improves electrical performance and reliability by helping to precisely manage solder joint stress and reducing solder flaws by nature.
Limitations and Challenges of BGAs
Stress Sensitivity: BGAs are prone to reliability issues since they are sensitive to stress. Flexural stress on the PCB may cause fractures in solder balls and compromise package integrity.
Inspection Complexity: Once assembled, BGAs are hard to inspect because the solder balls are not visible. As a result, advanced inspection methods, such as X-ray, are typically needed to detect defects.
Higher Costs: While offering greater performance, BGA implementation may be more costly than other packaging technologies due to the intricate processes and materials involved.

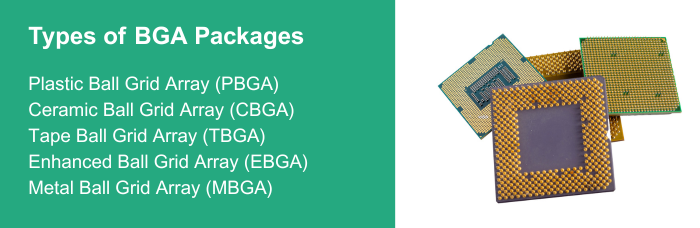

Types of BGA Packages
Plastic Ball Grid Array (PBGA): Popular for its cost-effectiveness, PBGA has a plastic substrate and is used in consumer electronics, telecommunications, and automotive applications.
Ceramic Ball Grid Array (CBGA): Having a ceramic substrate, CBGAs have excellent thermal conductivity and ruggedness and are used in aerospace, military, and medical applications.
Tape Ball Grid Array (TBGA): TBGAs, with tape-based packaging technology, are cost-effective and flexible, best suited for space-constrained applications like smartphones and tablets.
Enhanced Ball Grid Array (EBGA): EBGAs, which are made of ceramic and organic materials, provide superior thermal and electrical performance, making them essential for high-performance computing systems.
Metal Ball Grid Array (MBGA): With metal solder balls, MBGAs have higher temperature tolerance, making them ideal for automotive and industrial applications.
BGA Assembly Process
The BGA assembly process is precisely planned to be reliable and accurate:
Stencil Creation and Inspection: It begins with the creation of a solder stencil, which is inspected by solder paste inspection machines for proper application.
Reflow Soldering: Solder balls are melted in the reflow oven to form firm bonds with the PCB pads.
Cleaning and Inspection: The boards are cooled and inspected thoroughly by AOI (Automated Optical Inspection), X-ray, and electrical testing for solder joint quality after reflow.
Key Factors to Successful BGA Assembly
Precise Stencil Printing: Even solder paste deposition is very critical to avoid misalignment and shorting.
Temperature Control: Monitoring and controlling reflow temperatures is crucial to maintain solder integrity and to prevent damage to BGA components.
Comprehensive Inspection: The most advanced inspection techniques like X-ray are used to detect and rectify potential faults, ensuring the highest quality of assembly.
Ball Grid Arrays represent a key technology evolution in PCB technology with unsurpassed interconnect performance and density for modern electronic equipment. At PCBCart, we aim to provide innovative solutions and expert consultation to maximize your PCB assembly with the newest BGA technology. Despite some difficulties in their introduction, their advantages make them invaluable in many applications demanding high performance. Proper handling, precise assembly operations, and strict inspection regimes are crucial in maximizing the benefits of BGAs.
