What is a Printed Circuit Board?

Printed circuit boards (PCBs) are the boards that are used as the base in most electronics – both as a physical support piece and as the wiring area for the surface-mounted and socketed components. PCBs are most commonly made out of fiberglass, composite epoxy, or another composite material.


What is Printed Circuit Board | PCBCart


Most PCBs for simple electronics are simple and composed of only a single layer. More sophisticated hardware such as computer graphics cards or motherboards can have multiple layers, sometimes up to twelve.


Although PCBs are most often associated with computers, they can be found in many other electronic devices, such as TVs, Radios, Digital cameras and Cell phones. In addition to their use in consumer electronics and computers, different types of PCBs are used in a variety of other fields, including:


Medical devices. Electronics products are now denser and consume less power than previous generations, making it possible to test new and exciting medical technology. Most medical devices use a high-density PCB, which is used to create the smallest and densest design possible. This helps to alleviate some of the unique constraints involved with developing devices for the medical field due to the necessity of small size and light weight. PCBs have found their way into everything from small devices, such as pacemakers, to much larger devices like X-ray equipment or CAT scan machines.


Industrial machinery. PCBs are commonly used in high-powered industrial machinery. In places where current one-ounce copper PCBs do not fit the requirements, thick copper PCBs can be utilized instead. Examples of situations where thicker copper PCBs would be beneficial include motor controllers, high-current battery chargers and industrial load testers.


Lighting. As LED-based lighting solutions catch on in popularity because of their low power consumption and high levels of efficiency, so too do aluminum-backed PCBs which are used to make them. These PCBs serve as heat sinks and allow for higher levels of heat transfer than a standard PCB. These same aluminum-backed PCBs form the basis for both high-lumen LED applications and basic lighting solutions.


Automotive and aerospace industries. Both the automotive and aerospace industries make use of flexible PCBs, which are designed to withstand the high-vibration environments that are common in both fields. Depending on specifications and design, they can also be very lightweight, which is a necessity when manufacturing parts for transportation industries. They are also able to conform to the tight spaces that might be present in these applications, such as inside instrument panels or behind the instrument gauge on a dashboard.


There are several overall types of PCB boards each with their own particular manufacturing specifications, material types and usages: Single-layer PCBs, Double-layer PCBs, Multi-layer PCBs, Rigid PCBs, Flexible PCBs, Rigid-Flex PCBs, High-frequency PCBs, Aluminum-backed PCBs.

Single-layer PCBs

A single-layer or single-sided PCB is one that is made out of a single layer of base material or substrate. One side of the base material is coated with a thin layer of metal. Copper is the most common coating due to how well it functions as an electrical conductor. Once the copper base plating is applied, a protective solder mask is usually applied, followed by the last silk-screen to mark out all of the elements on the board.


Single-layer PCB | PCBCart


Since single-layer/single-sided PCBs only have their various circuits and components soldered onto one side, they are easy to design and manufacture. This popularity means that they can be purchased at a low-cost, especially for high-volume orders. The low-cost, high volume model means they are commonly used for a variety of applications, including calculators, cameras, radio and stereo equipment, solid state drives, printers and power supplies.

Double-layer PCBs

Double-layer or double-sided PCBs have a base material with a thin layer of conductive metal, like copper, applied to both sides of the board. Holes drilled through the board allow circuits on one side of the board to connect to circuits on the other.


Double-layer PCB | PCBCart


The circuits and components of a double-layer PCB board are usually connected in one of two ways: either utilizing a through-hole or with the use of a surface-mount. A through-hole connection means that small wires, known as leads, are fed through the holes, with each end of the leads then soldered to the right component.


Surface mount PCBs don't utilize wires as connectors. Instead, many small leads are soldered directly to the board, meaning that the board itself is used as a wiring surface for the different components. This allows circuits to be completed using less space, freeing up space to allow the board to complete more functions, usually at higher speeds and a lighter weight than a through-hole board would allow.


Double-sided PCBs are typically used in applications which require an intermediate level of circuit complexity, such as Industrial controls, Power supplies, Instrumentation, HVAC systems, LED lighting, Automotive dashboards, Amplifiers and Vending machines.

Multi-layer PCBs

Multi-layer PCBs consist of a series of three or more double-layered PCBs. These boards are then secured together with a specialized glue and sandwiched between pieces of insulation to ensure that excess heat doesn't melt any of the components. Multi-layer PCBs come in a variety of sizes, going as small as four layers or as large as ten or twelve. The largest multi-layer PCB ever built was 50 layers thick.


Multi-layer PCB | PCBCart


With many layers of printed circuit boards, designers can make very thick, complex designs which are suitable for a broad range of complicated electrical tasks. Applications where multi-layer PCBs would be beneficial include File servers, Data storage, GPS technology, Satellite systems, Weather analysis and Medical equipment.

Rigid PCBs

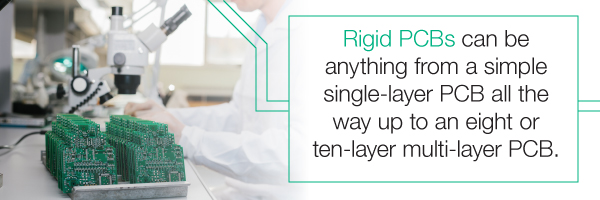

Rigid PCBs are printed circuit boards that are made out of a solid substrate material that prevents the board from twisting. Possibly the most common example of a rigid PCB is a computer motherboard. The motherboard is a multilayer PCB designed to allocate electricity from the power supply while simultaneously allowing communication between all of the many parts of the computer, such as CPU, GPU and RAM.


Rigid PCBs make up perhaps the largest number of PCBs manufactured. These PCBs are used anywhere that there is a need for the PCB itself to be set up in one shape and remain that way for the remainder of the device's lifespan. Rigid PCBs can be anything from a simple single-layer PCB all the way up to an eight or ten-layer multi-layer PCB.


Rigid PCB | PCBCart


All Rigid PCBs have single-layer, double-layer or multilayer constructions, so they all share the same applications.

Flexible PCBs

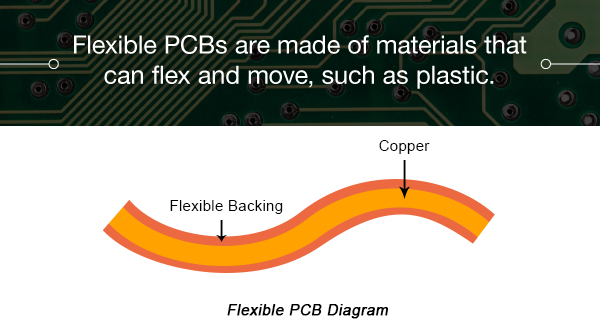

Unlike rigid PCBs, which use unmoving materials such as fiberglass, flexible PCBs are made of materials that can flex and move, such as plastic. Like rigid PCBs, flexible PCBs come in single, double or multilayer formats. As they need to be printed on a flexible material, they tend to cost more for fabrication.


Flexible PCB | PCBCart


Still, flexible PCBs offer many advantages over rigid PCBs. The most prominent of these advantages is the fact that they are flexible. This means they can be folded over edges and wrapped around corners. Their flexibility can lead to cost and weight savings since a single flexible PCB can be used to cover areas that might take multiple rigid PCBs.


Flexible PCBs can also be used in areas that might be subject to environmental hazards. To do so, they are simply built using materials that might be waterproof, shockproof, corrosion-resistant or resistant to high-temperature oils - an option that traditional rigid PCBs may not have.

Flex-rigid PCBs

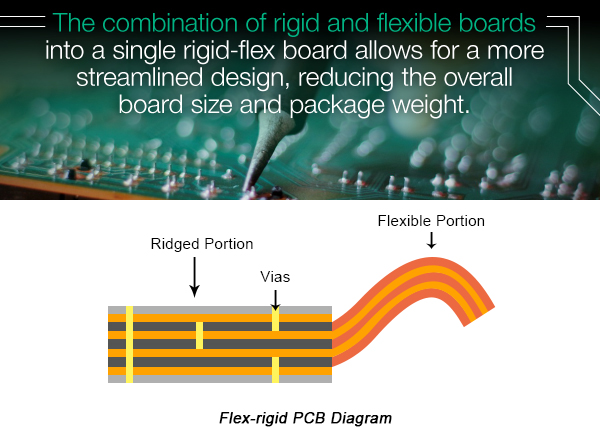

Flex-rigid PCBs combine the best of both worlds when it comes to the two most important overarching types of PCB boards. Flex-rigid boards consist of multiple layers of flexible PCBs attached to a number of rigid PCB layers.


Flex-rigid PCBs have many advantages over just using rigid or flexible PCBs for certain applications. For one, rigid-flex boards have a lower parts count than traditional rigid or flexible boards because the wiring options for both can be combined into a single board. The combination of rigid and flexible boards into a single rigid-flex board also allows for a more streamlined design, reducing the overall board size and package weight.


Flex-rigid PCB | PCBCart


Flex-rigid PCBs are most often found in applications where space or weight are prime concerns, including Cell phones, Digital cameras, Pacemakers and Automobiles.

High-frequency PCBs

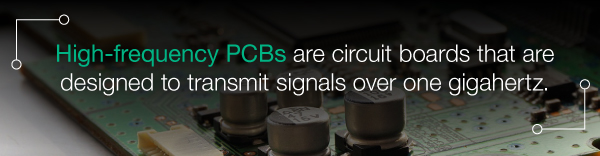

High-frequency PCBs refer to a general PCB design element, rather than a type of PCB construction like the previous models. High-frequency PCBs are circuit boards that are designed to transmit signals over one gigahertz.


High-frequency PCB | PCBCart


High-frequency PCB materials often include FR4-grade glass-reinforced epoxy laminate, polyphenylene oxide (PPO) resin and Teflon. Teflon is one of the most expensive options available because of its small and stable dielectric constant, small amounts of dielectric loss and overall low water absorption.


Many aspects need to be considered when choosing high-frequency PCB board and its corresponding type of PCB connector, including dielectric constant (DK), dissipation, loss and dielectric thickness.


The most important of those is the Dk of the material in question. Materials with high probability for the change of dielectric constant often have changes in impedance, which can disrupt the harmonics that make up a digital signal and cause an overall loss of digital signal integrity — one of the things that high-frequency PCBs are designed to prevent.


Other things to consider when choosing the boards and PC connector types to use when designing a high-frequency PCB are:

Dielectric loss (DF), which affects the quality of signal transmission. A smaller amount of dielectric loss could make a small amount of signal wastage.

Thermal expansion. If the thermal expansion rates of the materials used to build the PCB, such as copper foil, are not the same, then materials could separate from each other due to changes in temperature.

Water absorption. High amounts of water intake will affect the dielectric constant and dielectric loss of PCB, especially if it is used in wet environments.

Other resistances. The materials utilized in the construction of a high-frequency PCB should be rated highly for heat resistance, impact endurance and resistance to hazardous chemicals, as necessary.

Aluminum-Backed PCBs

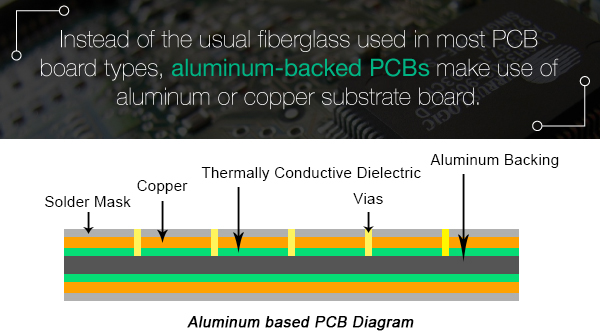

Aluminum-backed PCBs are designed in much the same way as their copper-backed counterparts. However, instead of the usual fiberglass used in most PCB board types, aluminum-backed PCBs make use of aluminum or copper substrate board.


Aluminum-backed PCBs | PCBCart


The aluminum backing is lined with thermally insulating material that is designed to have a low thermal resistance, meaning less heat is transferred from the insulating material to the backing. Once the insulation is applied, a circuit layer of copper, ranging in thickness from one ounce to ten, is applied.


Aluminum-backed PCBs have many advantages over PCBs with a fiberglass backing, including:

Low cost. Aluminum is one of the most abundant metals on Earth, making up 8.23% of the planet's weight. Aluminum is easy and inexpensive to mine, which helps to cut expenses in manufacturing process. Thus, building products with aluminum is less expensive.

Environmentally friendly. Aluminum is non-toxic and easily recyclable. Due to its ease of assembly, manufacturing printed circuit boards out of aluminum is also a good way to conserve energy.

Heat dissipation. Aluminum is one of the best materials available for dissipating heat away from crucial components of circuit boards. Instead of dispersing the heat out into the rest of the board, it transfers heat out into the open air. Aluminum PCB cools faster than an equivalent-sized copper PCB.

Material durability. Aluminum is far more durable than materials like fiberglass or ceramic, especially for drop tests. The use of sturdier base materials helps reduce damage during manufacture, shipping and installation.


All of these advantages make Aluminum PCBs an excellent choice for applications require high outputs of power within very tight tolerances, including Traffic lights, Automotive lighting, Power supplies, Motor controllers and High-current circuitry.

In addition to those major areas of use, aluminum-backed PCBs can also be used in applications that require a high degree of mechanical stability or where the PCB might be subject to high levels of mechanical stress. They are less subject to thermal expansion than a fiberglass-based board, meaning that the other materials on the board, such as the copper foil and insulation, will be less likely to peel away, further lengthening the lifetime of the product.


Throughout the years, PCBs have evolved from the simple single-layer PCBs used in electronics such as calculators to more complex systems, such as a high-frequency Teflon design. PCBs have found their way into almost every industry on the planet, from simple electronics like lighting solutions all the way up to more complex industries like medical or aerospace technology.


The evolution of PCBs has also pushed a development in PCB building materials: no longer are PCBs built solely out of fiberglass-backed copper foil. New construction materials include aluminum, Teflon and even bendable plastics. Bendable plastics and aluminum, in particular, have spurred the creation of products like rigid-flex and aluminum-backed PCBs to address the common problems associated with many industries.
