With the extreme developments in modern electronics, the demand for miniature devices with more power has expanded exponentially. The revolution has driven a revolution in the packaging of electronic components, resulting in the widespread use of Surface-Mount Technology (SMT) and even more so, Ball Grid Array (BGA) chips. BGA technology plays a central role in delivering the challenging requirements of space reduction and performance improvement needed by today's high-tech devices. This in-depth article delves into what BGA chips are, their composition, benefits, uses, challenges, and their major contribution to technology progress.
What is a BGA Chip?
A Ball Grid Array (BGA) chip is a surface-mount package specifically for integrated circuits (ICs). Unlike the traditional pin-based package method, BGA chips use an array of solder balls on the substrate, which physically touch a printed circuit board (PCB) and offer electrical connections. The novel design optimizes space and electronic device performance and reliability.
BGA packaging is very popular because of its ability to accommodate complex circuitry in a small footprint, making it an ideal choice for an extensive range of applications. They range from the latest CPU microprocessors to other high-performance devices in products such as smartphones, tablets, laptops, automotive systems, and so on.
BGA Chip Structure
BGA chips are made up of different integral components:
Die: Die is the main semiconductor component that houses the chip's primary operations. Typically fabricated from silicon, it has a number of electronic components including transistors, resistors, and capacitors. The die is coated with a layer of silicon dioxide, which acts as a barrier to contamination.
Substrate: The substrate is the foundation support of the BGA package. It is generally a plastic or glass substrate with solder balls to establish connectivity with the PCB. Substrates can be unidirectional, with solder balls in one direction, or bidirectional, with solder balls in more than one direction of the PCB tracks.
Solder Balls: Placed in an array on the bottom of the substrate, solder balls are responsible for electrical connectivity. The balls create a firm connection between the PCB and the BGA package, enabling proper signal communication.
Pitch: Pitch refers to the density of the solder balls per square inch that determines the connectivity and functionality of the BGA package. The differences in solder ball and pitch size offer varying manufacturing requirements.
Trace: Traces are copper wires in the BGA chip package that facilitate signal transportation among components. They are tasked with connecting the component to the motherboard.
BGA chips also employ sockets to enhance the connection reliability. The active or passive sockets simplify the mounting, as they provide proper alignment of the solder balls with the PCB.
Advantages of BGA Chips
Miniaturization: BGA chips are made to occupy the minimum space on PCBs, and thus are particularly suited for compact devices. Instead of external leads, solder balls serve in BGA chips, which effectively utilizes board space, allowing thinner and more streamlined electronics.
Self-Alignment: The spherical shape of the solder joints automatically aligns the chip during mounting, significantly enhancing alignment errors and assembly reliability.
Cost-Efficiency: BGA chips yield higher in the manufacturing process, hence lowering the production cost. Their basic design and relatively straightforward rework processes make them a cost-effective option for mass productions.
Easy Rework and Desoldering: Larger solder pads available with BGA chips enable easier rework and desoldering processes. This feature makes it quicker to repair and replace, which ultimately reduces downtime and repair costs.
Superior Conductivity: The multiple solder joints of a BGA chip provide it with superior conductivity, and it is an excellent choice for high-frequency and high-speed circuits where signal integrity is very important.
Improved Thermal Management: BGA chips provide improved heat dissipation, maintaining the chip at its optimum operating performance. They are designed with enhanced heat transmission efficiency, and they can be supplemented with other thermal management devices such as heat sinks or thermal vias.

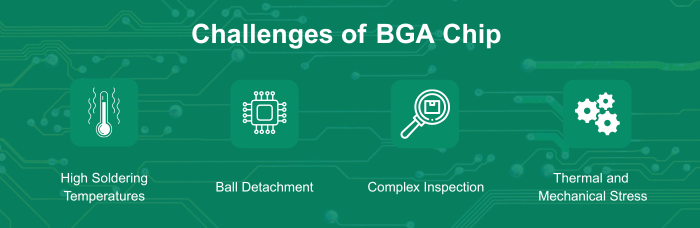

BGA Chip Challenges
BGA packages, notwithstanding the advantages, have some challenges:
High Soldering Temperatures: BGA soldering is conducted at high temperatures, usually over 400°C. Such high temperatures are harmful to the substrate and a risk if not well handled.
Thermal and Mechanical Stress: Due to differences in the thermal expansion of the substrate and the solder balls, mechanical stress and solder fatigue can occur, which can affect the reliability of the chip.
Ball Detachment: Handling defects may cause solder balls to detach, and the circuit's reliability is compromised. Even though they are secured with adhesive, it is difficult to replace detached balls, and they can create significant functional issues.
Complex Inspection: Because of the complexity and small size of BGA packages, optical inspection is not sufficient. X-ray inspection must be used to non-destructively evaluate the quality of the solder joints.
Applications of BGA Chips
The versatile advantages of BGA chips make them omnipresent across a variety of applications:
Consumer Electronics: BGA technology lies at the core of the compact and performance-driven design of smartphones, tablets, laptops, and game consoles. These devices demand the space-saving capability and high performance that are provided by BGA chips.
Computing Systems: From general-purpose laptops to high-performance servers, computing systems benefit from the high-density interconnect solutions provided by BGA packages.
Automotive Systems: In modern cars, where electronic integration is ubiquitous, BGA chips provide the space-saving and high-efficiency solutions that are necessary for electronic control units (ECUs) and infotainment systems.
Medical Devices: The compactness and reliability of BGA chips enable the development of portable and wearable medical devices, providing greater patient monitoring and diagnostics.
Aerospace and Defense: BGA packaging is vital for aerospace and defense high-reliability applications where size, weight, and performance are critical.
BGA chips have revolutionized the design and function of electronic devices, and they have been an important factor in the trajectory of technological progress. With the ability to deliver high performance in a compact form factor, they are a cornerstone of innovation in electronics. As the technology further develops, the role of BGA packaging can only grow, becoming a pillar for the future of electronic innovations.
