The pace and quality of data transfer between PCB design and manufacturing in the modern electronics industry have a direct impact on the quality of the products, lead time, and the overall cost. With improving complexity of boards and a reduction in the lifecycle of products, the classical file-based workflow is becoming more revealed as an ineffective and error-prone mechanism. The solution to this issue was introduced as IPC-2581, a single intelligent standard of data exchange in all of PCB manufacturing processes.
IPC-2581 is a vendor-neutral standard developed and maintained by IPC. It establishes an overall digital product model that presents the design, fabrication, assembly and test data into one structured file that is XML based. Engineers are now able to send a single entire dataset that is a functional representation of the PCB product as opposed to sending multiple disjointed documents.
The Role of IPC-2581 in PCB Manufacturing
The data exchange in PCB has been dependent on Gerber-based outputs over decades. In a traditional workflow, designers need to create individual copper layer files, extra NC drill files, separate netlists to be used in electrical testing, stack-up drawings as PDF files, pick-and-place files to be used in assembly and BOM spreadsheets to be used in procurement. Despite its prevalence, this disjointed strategy creates several avenues of disalignment.
Every extra file brings about the chances of confusion during revision, loss of data or failure to have a congruent documentation. Stack-up definitions do not necessarily correspond to layer name. Drill charts are not necessarily aligned with layers of fabrication. The information on assembly could be manually interpreted. Such problems can cause a lot of repetition of clarification emails between designers and manufactures, which postpones the production process and raises the costs of engineering.
The IPC-2581 was designed to remove such fragmentation through combining all the required manufacturing information into a single standard format.
The Structure of IPC-2581
IPC-2581 is much more than a graphic artwork format. It is an entire electronic details of a PCB item. An IPC-2581 file of correct generation contains the copper layer information, drill and routing, detailed stack-up assembly, impedance related parameters, logical netlist binding, component, placement, bill of materials, test point, and assembly instruction.
Since it is based on XML, it is highly hierarchical. Individual file parts are distinctly identified and amenable to computer analysis so that the data can be read by EDA tools and production programs alike. This hierarchical architecture greatly minimizes human intervention when doing an engineering review. The output is one source of truth which flows together through design to fabrication and assembly.

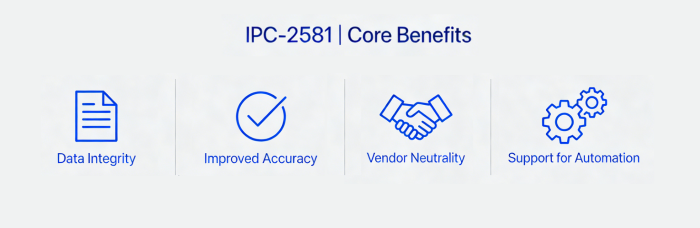

Benefits of IPC-2581
Data Integrity:
Data integrity can be considered as one of the most valuable benefits of IPC-2581. Eliminating the necessity to match a variety of independent files, the threat of mismatched revisions is greatly minimized. Manufacturers are provided with a complete synchronized set of data as opposed to a set of loosely interconnected outputs.
Improved Accuracy:
There is also a great improvement in accuracy. As netlist data, stack-up information and drill data are stored directly in the file, such information can be automatically checked to ensure that discrepancies are located before production starts. This facilitates a dependable DFM analysis and minimizes chances of fabrication error.
Vendor Neutrality:
Vendor neutrality is another major strength. In contrast with proprietary formats, which are managed by single firms, IPC-2581 is an IPC managed format with an industry consortium behind it. This guarantees stability in the long term and wide compatibility with other software platforms.
Support for Automation:
Operationally, IPC-2581 aids in automation and digital manufacturing programmings. Its organized structure enables direct interconnection with manufacturing systems, electrical test programming, stencil design generation, pick-and-place programming and manufacturing execution programming. With the introduction of factories to Industry 4.0 principles, such intelligent data exchange gains more and more value.
IPC-2581 in the PCB Design and Manufacturing Workflow
During the design stage, engineers finish the schematic capture, PCB layout and rule checking in their EDA tools. They do not export many fabrication and assembly products but create one file, IPC-2581, with the complete product definition. The version control is also made easier since there is a single dataset to handle.
Once the file is delivered to the manufacturer, it can be directly imported into the processing systems of engineers. The same file can be used to derive stack-up construction, drill programming, tooling preparation, and electrical test set-up. Embedded BOM and placement data assists effective pick and place programming and inspection configuration during assembly. This simplified process minimizes engineering clarification processes and minimizes the time before new products are introduced.
Adoption Challenges and Industry Advancements
IPC-2581 has not been adopted at a very rapid pace despite its technical benefits. Numerous companies stick to the set processes of Gerber that have been years old. Moving to a new format would need software intervention, training internally and process modification.
Nevertheless, the restrictions inherent in traditional file sets are becoming increasingly difficult to overlook as PCB designs have become more complex and digital traceability is increasingly being emphasized. More vendors of EDA are also providing enhanced IPC-2581 export features, and more manufacturers are extending their systems to permit intelligent data import.
Interoperability testing and more widespread implementation throughout the electronics supply chain is still encouraged by industry cooperation via the IPC-2581 Consortium.
Strategic Importance for OEMs and PCB Manufacturers
In the case of OEMs and PCB manufacturers, IPC-2581 provides a quantifiable operational advantage. It saves time of engineering analysis, reduces error in data interpretation, reduces communication, and provides better predictability in production. The value of a cohesive digital product model is especially high in high-reliability sectors, such as automotive, aerospace, industrial control, and medical electronics.
Whereas the transition cost may be significant, long-term productivity gains, quality control and traceability can benefit the organization significantly, despite the upfront costs of initial implementation.
Intelligent and vendor-neutral PCB data exchange IPC-2581 will solve the efficiency challenge posed by fragmented processes. It allows accurate data, minimized risk and efficient production processes through consolidated design, fabrication, assembly, and test data in a single, organized file. With the advancement of the electronics industry, IPC-2581 is a standard that is gaining importance to achieve quality and contemporary production.
