In the complex PCB manufacturing, design, and assembly process, the substrate material selection is the deciding point in determining the final product cost, quality, and functionality. Among the numerous materials that can be used, FR-4 and Rogers are two of the most prevalent materials utilized within the industry. Both of them have their own set of strengths and optimal uses, but both of them are utilized for a purpose when high-speed and high-frequency environments are necessary.
FR-4 is appreciated due to its cost-effectiveness and flexibility and thus is ubiquitous in various PCB manufacturing sectors. Rogers materials, however, are appreciated due to their superior performance quality in high-speed and high-frequency applications. In this article, we provide a detailed comparison of Rogers vs. FR-4 to help you make the best decision about the most suitable material for your specific PCB needs.
Material Composition and Characteristics
The FR-4 material is composed of epoxy resin and woven fiberglass cloth reinforcement, which provides it with a hard structure with uniform mechanical stability. This default option has stable electrical insulation and a smooth finish, which serves for typical applications with average requirements.
Rogers products are formulated, however, from hydrocarbon-based substrates or high-performance resin systems and may include ceramic fillers. They are naturally softer in nature but perform better in high-frequency applications due to their superior electrical properties. This unique formulation provides improved signal integrity and reduced loss.
Dielectric Properties and Signal Integrity
The dielectric constant (Dk) of a material is critical in high-frequency applications, affecting impedance and signal propagation speed. FR-4 typically exhibits a Dk range of 4.0 to 4.8, which can result in substantial signal loss and propagation delay at higher frequencies.
For comparison, Rogers products offer a much lower and more uniform Dk, commonly 2.2 to 3.5, which minimizes signal loss and offers stable electrical performance over an extensive frequency range. This uniformity is essential in applications like microwave and RF where signal integrity cannot be compromised.
Thermal Management and Electrical Performance
PCB materials must be effective in thermal management, particularly for high-speed applications. FR-4 thermal performance is constrained by its glass transition temperature (Tg), around 130°C to 150°C. This proves to be a constraint in harsh thermal environments.
Rogers materials are better for thermal management with Tg greater than 150°C and better thermal conductivity. Such a feature ensures outstanding performance under harsh operating conditions and makes Rogers the best option for thermal-critical applications.
Also, the dissipation factor (Df) is a measure of signal loss as energy is dissipated to heat. FR-4 will have a Df typically in the range of 0.020–0.030, higher than that of Rogers materials, which is usually less than 0.004. The lower dissipation factor of Rogers offers lower signal attenuation and is accountable for maintaining high-quality signal transmission in complex electronic applications.
Impedance Control and Stability

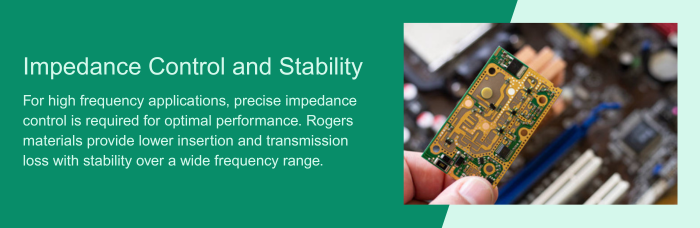

For high frequency applications, precise impedance control is required for optimal performance. Rogers materials provide lower insertion and transmission loss with stability over a wide frequency range. This advantage is very helpful in radar, RF circuit boards, and applications that require precise impedance control.
While FR-4 is sufficient for less stringent applications in terms of impedance, high-end FR-4 types with enhanced Tg levels have enabled hybrid solutions. Both FR-4 and Rogers materials can be utilized in a single structure and will ensure that the cost and performance demands are matched, as is becoming the norm in the production of multi-layer and complex PCBs.
Cost Considerations
FR-4's financial advantage cannot be refuted with its balance of value and performance for most applications. It is affordable and therefore finds extensive use in consumer electronics, automotive, and industrial applications where cost is a key consideration.
Though more costly, Rogers materials provide unrivaled performance at high frequency, which is paramount in aerospace, satellite, and telecommunications applications. That superior higher-frequency performance is worth the added cost, particularly where reliability and precision are essential.
Hybrid solutions that blend both FR-4 and Rogers materials offer an economical solution for high-performance applications without draining the budget. It leverages each material's best property to ensure optimal overall cost-performance, offering customized solutions for complex designs.
Application Areas and Performance
FR-4 is favored for medium and low-frequency applications under normal environmental conditions, where its exceptional mechanical properties and electrical insulation can withstand general use.
In contrast, Rogers products cannot be replaced in high frequency applications like satellite, microwave, and radar technology where stability of signals, integrity of signal, and low loss are critical concerns.
Rogers' wide stability across frequencies and operational conditions also finds its place in military and aerospace applications where the cost of failure of material can be particularly high.
Choice between FR-4 and Rogers materials will be based on each application's singular requirements. While FR-4's cost-effectiveness and ease of access make it an often-used choice, Rogers materials yield the optimal performance in high-speed, high-frequency applications that are essential for the latest electronic environments.
Frequency range, thermal stability, cost, and intended application will all need to be carefully considered in determining between these two choices to deliver the appropriate material.
