Poor solder wetting within the intricate world of printed circuit board assembly is a devious but unsafe problem. Faulty joints and unstable operation could be the result if not resolved. At PCBCart, we understand the complexities of gaining strong solder joints and strive to provide insights on avoiding this daily problem and emphasizing accuracy within the process.
Understanding Solder Wetting
Wetting of solder is the highlighted feature of the soldering process, whereby melted solder floats over and bonds with metal surfaces of component leads and PCB pads to form solid, conductive joints. Soldering needs to occur in a medium where the solder has wetted the surfaces optimally at the correct temperature without contaminants. Knowing the significance of good solder wetting is necessary to ensure reliability of electronic assemblies and attain industry standards.
The Significance of Proper Wetting
Good wetting is not only a desirable quality; it is essential to creating durable and operational solder joints. Poor wetting will lead to dull, porous, and grainy joints that have poor adhesion and can lead to field failures. Good, well-wetted solder joints, on the other hand, are shiny and smooth, indicating a good bond that will withstand the abuses of use and time. Ideal wetting of the solder ensures that electronics work as designed and both time and money are saved in the long run.

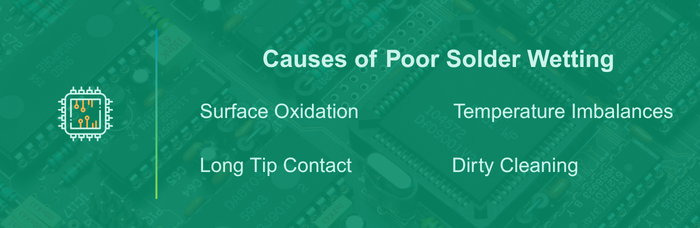

Causes of Poor Solder Wetting
Being aware of the most prevalent causes of poor solder wetting can help in creating effective preventative measures. Common culprits are:
Surface Oxidation: Oxidized surface on the solder tips or parts can deteriorate wetting by preventing good solder adhesion. Oxides form naturally on metals when exposed to air and, particularly at high temperatures, can act as a barrier to bonding.
Temperature Imbalances: Temperatures that are too high or too low can inhibit adequate solder flow and wetting. Below the proper temperature, the solder will not have the fluidity necessary to bond adequately. On the other extreme, temperatures too high will cause flux to evaporate too quickly, reducing its capability for oxide removal.
Long Tip Contact: Placing the tip of the soldering iron on components for longer times leads to over-heating and burning of flux, thereby causing damage to component surfaces and also impeding acceptable solder adhesion.
Dirty Cleaning: Grease, dirt, or residues on components and PCBs may cause disruption of the soldering operation and lead to poor wetting and poor bonding. It is essential to ensure all surfaces are pure and clean.
Strategies to Prevent Poor Solder Wetting
Prevention is also the secret to high-quality solder joints. Consider the following steps to optimize solder wetting:
Ensure Cleanliness
Surface Preparation: Clean the surface strictly with appropriate solvents that will remove grease and dirt on the surface, which may interfere with solder wetting. Isopropyl alcohol is a very common cleaner to use, as it effectively removes contaminants without leaving a residue. A clean surface ensures that the solder has the capability to form optimal mechanical and electrical contacts.
Tip Maintenance: Regularly tin your soldering iron tips before turning off the iron. This process involves coating the tip with a thin layer of solder. Tinning prevents oxidation and ensures that the tips are prepped for optimal wetting when called into action. It also extends the life of your soldering tips, saving costs over time.
Optimize Soldering Environment
Temperature Control: Ensure your soldering iron reaches and maintains the desired temperature, typically 320°C to 350°C for lead-free soldering. Correct temperature provides correct solder flow and soldering bonding without damaging devices. Preheat your soldering iron enough not to create cold joints, which occur when the solder does not get fully melted.
Use of High-Activity Solder Paste: Choose high-activity solder pastes for better wetting, especially when handling complex surface finishes like gold or oxidation-prone surfaces. High-activity fluxes can clean the metal surfaces well to improve solder spreading and adhesion.
Apply Proper Techniques
Timing: Avoid exposing the soldering iron tip for too long to moving components to prevent burning and destruction, which will hinder solder wetting. Good soldering should have a rapid heating of the joint, application of solder, and removal of heat to allow cooling.
Joint Rework: If there is poor wetting, it can be fixed. Stop soldering, allow the joint to cool, and employ correct cleaning methods to remove any burnt flux. Then reheat the joint with your soldering iron after checking to ensure that it's nicely warmed up. Add more flux if necessary and attempt to solder again, this time ensuring that it has improved adhesion.
During the complex process of assembling PCBs, inadequate solder wetting is an issue that has the potential to lead to severe issues such as faulty joints and questionable electronics. However, knowledge of the solder wetting mode and prophylactic actions can completely improve the quality of solder joints. Properly cleaned surfaces, optimization of soldering environment, and optimal application of the appropriate soldering technique are all the keys to bringing about high-quality, durable contact. This proactive approach not only ensures enhanced product reliability but also enhances efficiency throughout the manufacturing process.
