How to Solder Ball Grid Array

Ball Grid Arrays (BGAs) would initially appear to be challenging to solder, given the fact that the solder balls are positioned between the BGA body and the printed circuit board. However, with minimal adjustments to the PCB assembly process, BGAs offer outstanding benefits in reliability as well as performance. This comprehensive guide explores the intricacies of BGA soldering and its groundbreaking impact on modern electronic manufacturing.


With advancing technology, the chips required increasingly higher pin counts, and traditional pin packages like the Quad Flat Pack (QFP) became incompatible. QFP's delicate pins not only easily got damaged but also complicated PCB routing since they were very closely positioned to one another. This necessitated a new packaging system, and the Ball Grid Array (BGA) was invented where the whole back of the chip is utilized to overcome these limitations.


A Ball Grid Array (BGA) package is unique compared to regular pin-based ones. Instead of the fragile, closely-packed pins, BGAs employ an array of solder balls in a grid pattern. These balls are met by an equivalent set of copper pads on the PCB, the effect of which is that there is a better solid connection with no risk of pin breakage.

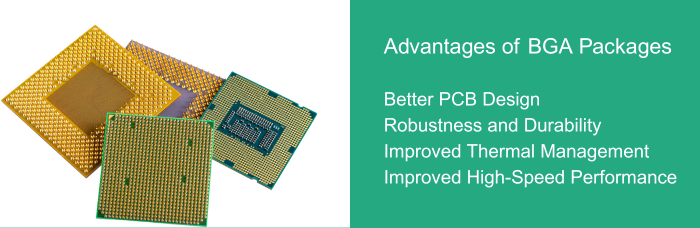

Advantages of BGA Packages


Advantages of BGA Packages | PCBCart


BGAs have several important advantages over QFPs:


Better PCB Design: BGA spreads contacts evenly over the entire package area, reducing significantly the track density problems faced by QFP, where pin density leads to complicated and complex routing issues.


Robustness and Durability: The lack of fragile pins and the implementation of solid solder balls makes BGAs significantly more robust. Damage is significantly less possible, as the risk involved with handling delicate components is significantly reduced.


Improved Thermal Management: With lower thermal resistance than QFPs, BGAs transfer heat efficiently from the integrated circuit to the PCB, enhancing performance and reducing the likelihood of overheating.


Improved High-Speed Performance: BGAs' shorter leads decrease inductance, resulting in better signal integrity and allowing BGAs to better handle high-speed applications than QFPs.


The BGA Soldering Process


One of the greatest concerns when BGAs were first introduced was the solderability of these devices, since the connections are not visible. However, optimized BGA soldering processes have proven to be very reliable:


Preparation Phase:


Cleanliness is everything. Both the PCB and BGA must be free of contaminants to obtain the optimum solder adhesion and connection quality.


Mount the PCB on a rigid platform so that there is no movement during the process.


Solder Paste Application:


A stencil of the same pattern of BGA pads on the PCB is used to print solder paste accurately. This ensures that each pad receives the proper amount of solder needed.


The meticulous removal of the stencil avoids smudging, which can lead to shorts or poor connections.


BGA Placement:


Positioning the BGA in its exact position over its corresponding pads is vital. Microscopes and precision tools are used to position the solder balls directly over their particular pads.


Reflow Soldering Process:


Reflow soldering involves gradually heating the assembly to melt the solder balls. Surface tension automatically aligns the BGA with the circuit board as the solder hardens during cooling.


The composition of the alloy of the solder and the controlled temperature profile make the solder not completely melt, preventing solder balls from merging, which would lead to bridging.


Quality Inspection and Assurance


Quality Inspection and Assurance | PCBCart


The inspection of BGA solder joints posed significant difficulties in the initial stages due to their inaccessible location. With the advancement of times, Automated X-ray Inspection (AXI) has become a standard to guarantee joint reliability under BGAs. AXI facilitates exact inspection of the solder joint, identifying voids or defects that could remain undetected using regular electrical testing.


Reworking BGA Assemblies


Rework of BGA components would likely be even more burdensome to achieve than their original manufacture, with high-precision equipment:


Rework Stations: They employ infrared heating to locally heat the solder for removal or re-soldering of BGAs. A rework station comprises a few important elements such as a precision jig, a thermocouple for temperature monitoring, and a vacuum tool for picking up the BGA.


Precautionary Procedures: The target BGA alone should be warmed when reworking, and that is to avoid unintended destruction of other nearby components. It demands a steady hand and a sensitivity to heat dynamics, especially in densely populated multi-layered PCBs where the heat is badly dissipated.


Adopting BGA Technology


Since their invention, BGAs have been an integral component of advanced PCB assembly process, as much as high volume manufacturing is complemented by prototype work. While being the first inconvenience, the use of BGAs creates enhanced performance and reliability in a circuit compared to alternative options.


For industries such as telecommunications, consumer electronics, and computing, the functionalities that are offered by BGAs — from superior thermal management to high-speed data processing — are immeasurable. As technology continues to evolve, the demand for efficient, reliable, and good connectivity solutions will only increase, further cementing the role of BGAs in the future of electronics manufacturing.


Refine BGA Assembly Solutions with PCBCart


BGA soldering is an art that needs to be mastered by those professionals associated with the electronics manufacturing industry. The increased complexity is quickly overshadowed by the huge performance and reliability advantages that BGAs bring. As soldering technology and inspection technology evolve, BGAs are a cornerstone of modern PCB assembly and design, driving innovation and efficiency in industries across the globe. As we continue on to smaller and more high-performance electronic products, the necessity to master BGA technology has never been more important.


At PCBCart, we understand the vital role BGAs play in contemporary electronic manufacturing processes. With our expertise in PCB assembly and our advanced technology solutions, we ensure that you receive the finest products specifically engineered to meet your needs. Whether it is mass production or building prototypes, our services are customized to assist you in meeting your goals with precision and reliability. We invite you to learn more about the PCBCart advantages and request a quote to learn how we can assist you to bring your projects to life. With our commitment to excellence and innovation, you can count on us as your trusted partner to shape the future of electronics manufacturing.
