Most industrial PCBA rework doesn't originate on the production floor — it originates on the design desk, weeks or months before a panel ever reaches a stencil. By the time a footprint mismatch, a starved pad, or a thermally imbalanced trace shows up as a solder defect, the cost of fixing it has already multiplied several times over.
Why DFM Timing Determines Your Rework Budget
Engineering teams often treat Design for Manufacturability (DFM) review as an optional courtesy step. In practice, it's the single highest-leverage checkpoint in the entire build cycle, because the cost of correcting a design flaw grows roughly an order of magnitude at each stage it survives undetected.
| Stage Defect Is Found | Approx. Relative Cost to Fix |
|---|---|
| DFM review (pre-production) | 1x |
| First-article / NPI build | 10x |
| Volume production | 100x |
| Field failure / recall | 1000x |

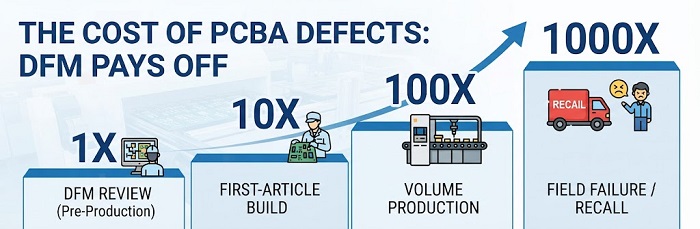

This "1-10-100-1000" pattern is why a two-day DFM audit consistently outperforms downstream firefighting. For high-mix, low-volume (HMLV) industrial programs — where NPI cycles are frequent and lot sizes are small — the math is even more favorable, since there's rarely a long production run to amortize a bad first article against.
The 38-Rule Framework: Five Categories That Matter Most
Our internal DFM checklist groups 38 discrete design rules into five categories, mapped to where defects actually cluster on industrial control, instrumentation, and test-equipment boards.
1. Pad Geometry & Component Spacing (12 rules)
This is the largest category because pad-level errors are the most frequent root cause of solder defects.
Minimum pad-to-pad clearance for 0402/0201 passives: ≥0.2mm to prevent solder bridging under reflow.
Fine-pitch QFN/BGA pad size tolerance vs. IPC-7351 nominal land pattern — deviations beyond ±0.05mm flagged for review.
Component-to-board-edge keep-out: ≥3mm on wave/selective solder sides to avoid edge-effect thermal shadowing.
2. Stencil Design Compatibility (8 rules)
Aperture-to-pad area ratio below 0.66 for fine-pitch parts triggers a paste-release warning.
Stencil thickness vs. mixed-technology boards (0201 next to connectors) — step-stencil requirement flagged automatically.
Print offset tolerance against fiducial reference: ≤50µm, verified against our jet-printing and 3D SPI closed-loop paste volume data before tooling is cut.
3. Wave / Selective Solder Keep-Out Zones (6 rules)
Minimum clearance between through-hole connector and adjacent SMD component: ≥2mm, sized for selective solder nozzle clearance.
Shadowing risk for tall components upstream of low-profile SMDs in wave direction.
Thermal relief pattern requirements on ground-plane-connected through-hole pads to prevent cold joints.
4. Test Point & Access Rules (7 rules)
Minimum test point diameter: 0.9mm for standard bed-of-nails fixturing.
Test point-to-component clearance: ≥1.27mm to prevent probe interference.
No test points under conformal-coat-masked areas without a documented masking plan.
5. Thermal Design & Component Orientation (5 rules)
Uniform copper pour connection to component pads via thermal relief spokes, not direct flood connection.
Consistent component orientation for wave soldering to minimize solder shadowing.
Reflow thermal mass balance across a panel to avoid localized over/under-heating.

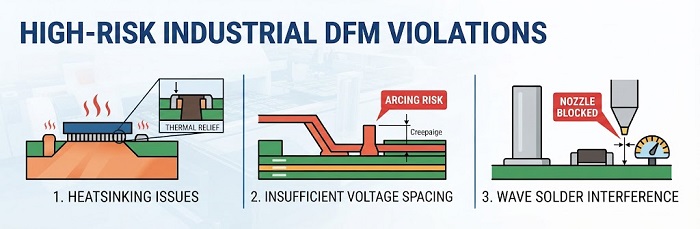

Three High-Risk Rules Specific to Industrial PCBA
Industrial boards — often mixing high-current power sections, dense digital logic, and legacy through-hole connectors — surface a few failure modes we see far more often than in typical consumer designs.
Uneven heat sinking from large copper pours. A fine-pitch component pad connected directly to a large copper plane (motor drivers, power regulators) acts as a heat sink during reflow, pulling heat away from the joint faster than surrounding pads. This is a leading cause of dry or non-wetted joints on otherwise correctly designed footprints. The fix — thermal relief spoking — is a two-minute layout change with outsized reliability impact.
Insufficient safety spacing for high-voltage nets. Industrial control boards frequently carry mixed-voltage domains (24V/48V control alongside mains-adjacent circuits). Spacing that passes visual inspection can still fail creepage/clearance review under panel-level audit, which is a common cause of failed acceptance at incoming QC.
SMD components crowding wave/selective solder nozzle paths. When a connector requiring through-hole soldering sits too close to nearby SMD parts, the selective soldering nozzle has no clean approach path, risking flux spatter or thermal damage to adjacent components. We flag any SMD within our minimum keep-out on the selective wave side during layout review, before tooling is committed.
Our DFM Review Process
Submission to report turnaround: 48 hours from Gerber/BOM receipt to a written DFM report.
Report contents: annotated defect screenshots keyed to layer/coordinate, specific correction recommendations, and a risk rating (High / Medium / Low) per finding.
Unresolved-risk disclosure: if a customer elects to proceed without addressing a High-risk finding, it's documented in writing as an accepted-risk waiver before build release — this keeps expectations aligned and avoids disputed rework liability later.
This process runs inside our IATF 16949-certified quality system, which gives the DFM audit trail the same document control and traceability rigor applied to production records — useful when a customer's own quality team needs to review why a design change was requested.

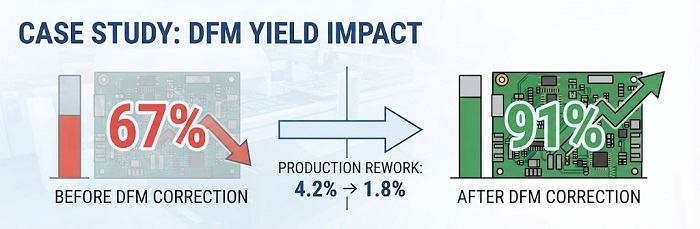

Case Study: NPI Yield Impact on an Industrial Control Board
On a recent multi-layer industrial controller board, our DFM audit identified 7 high-risk findings spanning pad geometry, thermal relief, and selective-solder keep-out violations.
| Metric | Before DFM Correction | After DFM Correction |
|---|---|---|
| First-article NPI yield | 67% | 91% |
| Steady-state production rework rate | 4.2% | 1.8% |
The corrected design also reduced the number of X-ray-flagged BGA/QFN voiding events during production monitoring, since two of the seven findings involved thermal profile mismatches that had been contributing to marginal solder volume.
Get Your Design Reviewed Before It Reaches the Floor
Every industrial PCBA program benefits from a second set of engineering eyes before Gerbers go to tooling. We offer a free DFM pre-review — submit your Gerber and BOM and our process engineering team will return findings within 48 hours.
You can also download our Industrial PCBA DFM 38-Point Self-Check Sheet, the same checklist framework used internally, formatted for your own design review process before submission.
Request your free DFM review or download the checklist today — and if you're evaluating EMS partners more broadly, ask about our EMS Supplier Evaluation Scorecard to benchmark quality systems, traceability, and NPI performance across vendors.
