Industry: Healthcare / Life Sciences
Key Capabilities: Ultrasonic Welding · DFM Optimization · Custom Tooling · IP-Rated Assembly · ABS Material Science
Overview
The manufacturing of high-precision medical-grade color readers requires a sophisticated balance between internal component protection and external industrial design. A primary challenge in this project was the assembly of the multi-faceted ABS casing, which needed to provide a reliable IPX4 splash-proof seal without compromising the device’s premium aesthetic finish. PCBCart’s engineering team implemented an advanced ultrasonic welding strategy that replaced traditional mechanical fastening, ensuring long-term durability and manufacturing stability.
Background
The client’s product features a geometric "diamond-cut" design with multiple angled faces on both the upper and lower covers. Traditional adhesive or mechanical assembly posed risks of uneven sealing and inconsistent cosmetic gaps. Given the device’s application in medical and laboratory environments, achieving a stable IPX4 rating was non-negotiable to protect the sensitive optical sensors within.
The Challenges

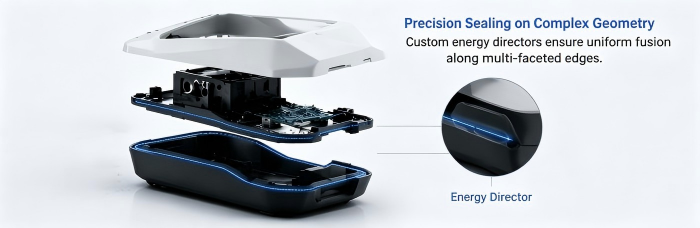

Complex Geometric Sealing: The non-linear "energy director" (welding line) along the multi-faceted shell edges required uniform pressure and energy distribution.
Material Sensitivity: ABS plastic is prone to surface marring and flash (excess material) if ultrasonic parameters are not strictly controlled.
Performance Benchmarks: The assembly had to pass rigorous splash-proof testing (IPX4) while maintaining a high-yield production rate of over 50,000 units.
Engineering Insight
Successful ultrasonic assembly on complex geometries depends on the synchronization of material science and mechanical precision. By analyzing the ABS flow characteristics and the distribution of the energy directors, we identified that standard welding horns would cause localized stress points. A customized vibration analysis was necessary to ensure even fusion across the entire joint interface.
Optimization Strategy
Equipment & Frequency Selection: We utilized a high-performance 2000IW ultrasonic welding system specifically calibrated for the resonance frequency of the ABS enclosure.
Custom Tooling & Fixture Development: Our engineers designed bespoke welding heads (horns) and specialized nest fixtures that contoured exactly to the product's "diamond-cut" shape, preventing surface scratches during the vibration phase.
Process Parameter Refinement: We defined strict "welding travel" and "energy trigger" parameters, followed by cross-sectional trial welds to inspect the internal fusion depth.
Quality Validation: Implemented 100% visual inspection for cosmetic flash and batch-based IPX4 validation to ensure the seal's structural integrity.
Results
Stable Mass Production: Successfully delivered 50,000+ units with a consistent production cycle and high first-pass yield (FPY).
Certified Protection: 100% compliance with IPX4 waterproof standards, significantly reducing field failure rates.
Aesthetic Excellence: Achieved a seamless, high-end finish that met the client’s stringent branding requirements.
