Industry: Healthcare / Life Sciences
Key Capabilities: Test Fixture Development · Functional Validation · Calibration · Multi-Product Compatibility · Modular Architecture
Overview
For Life Sciences manufacturers, testing efficiency is often hampered by the need for unique fixtures for every product variant. PCBCart addressed this by developing a unified, modular test fixture solution capable of supporting 32 different product models. This approach significantly reduced capital expenditure, simplified operator workflows, and ensured rigorous electrical validation across varying voltage requirements.
Background
A client in the medical sector faced a production bottleneck: 32 distinct PCB variants required functional electrical testing. Without existing fixtures, the cost of developing 32 separate test stations was prohibitive, and the floor space required for such an operation was impractical. Furthermore, each variant required different voltage thresholds, increasing the risk of human error during manual setup.
The Challenges
Complexity Management: Managing 32 different product configurations within a single testing ecosystem.
Voltage Variability: Ensuring the fixture could safely and accurately handle multiple voltage inputs without cross-contamination or damage.
High Setup Costs: The need for a cost-effective, scalable solution rather than 32 individual jigs.
Operational Simplicity: Reducing the technical burden on assembly line operators to prevent testing errors.
Engineering Insight
The key to scalability lies in "Interface Standardization." By designing a universal "Mother-Daughter" board architecture, the core testing logic and power management can reside on a master unit, while low-cost, product-specific adapter plates handle the unique physical and electrical pin-outs of the 32 variants.
Optimization Strategy
Unified Mainboard Architecture: Developed a central control board capable of switching between multiple voltage rails and logic levels via software presets.

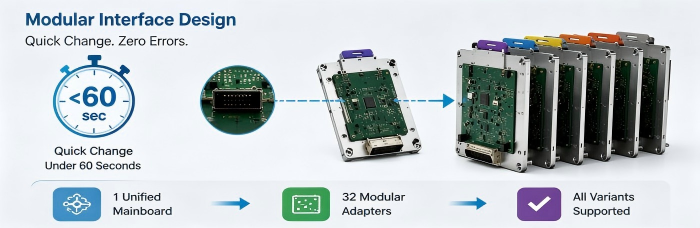

Modular Interface Design: Engineered quick-change "cassettes" or adapter plates that allow the operator to switch between product models in under 60 seconds.
Rigorous Functional Validation: Performed full-spectrum validation and calibration for all 32 models to ensure measurement accuracy and repeatability.
Standardized Operator UI: Simplified the testing interface to a "Pass/Fail" indicator system, removing the need for operators to interpret complex voltage data manually.
Results
Massive Cost Savings: Reduced fixture development costs by over 60% compared to individual jig procurement.
Operational Efficiency: Drastically reduced training time and eliminated setup errors associated with voltage switching.
Consistency: Achieved 100% testing repeatability across all 32 product variants.
Production Readiness: Successfully transitioned all models into stable, scalable production with a unified testing workflow.
