How to Identify SMD Components

Surface-Mount Devices (SMDs) are the backbone of electronics today, making possible compact and efficient circuitry designs. Through mounting them directly on PCBs, the components become space-efficient and perform better. Their compactness, however, is the drawback, accurate identification. Let's talk to identify commonly used SMD components, discussing their categories, purpose, and how to properly identify them.

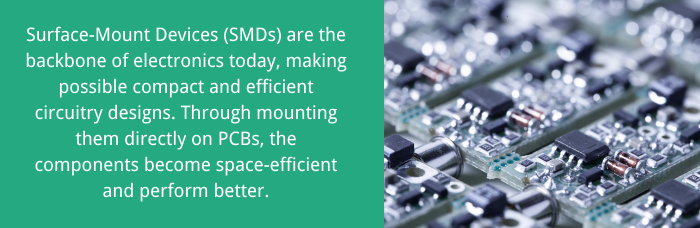

How to Identify SMD Components | PCBCart

Part 1: SMD Resistors

SMD resistors play a vital role in controlling current flow within a circuit. They are marked with two main methods:

Three or Four-Digit Code: The initial two or three digits typically depict significant figures, and the last digit depicts the multiplier.

"R" Notation: Certain resistors employ an "R" to represent the decimal point. "5R6," for instance, is equal to 5.6 ohms, where "R" is used to show the location of the decimal.

Classification: SMD resistors are divided into precision, power, and high-frequency resistors, which are all aimed at fulfilling special application needs.

Part 2: SMD Capacitors

Capacitors are important in storing electrical energy. SMD capacitor identification can involve:

Direct Marking: Capacitors with capacitance and voltage marked directly, such as "10μF/16V."

Numerical Code: Numerical codes may be applied, and "104" will mean 100,000 picofarads (or 100 nanofarads).

Letter Tolerance Code: Applied together with numbers, the letter denotes tolerance, and "104J" will denote 100 nanofarads of capacitance with ±5% tolerance.

Classification: The most frequent ones are ceramic, tantalum, and aluminum electrolytic capacitors. Ceramic capacitors are non-polarized, while the latter ones are polarized and need to be correctly oriented on PCBs.

Part 3: SMD Inductors

Inductors store energy in a magnetic field and generally have codes that are the same as resistors. For example, a code "470" can mean 47 μH (microhenries). Inductors are constructed using wire-wound or multilayer techniques and are used extensively for filtering and energy storage. Ferrite bead inductors are also famous for preventing EMI.

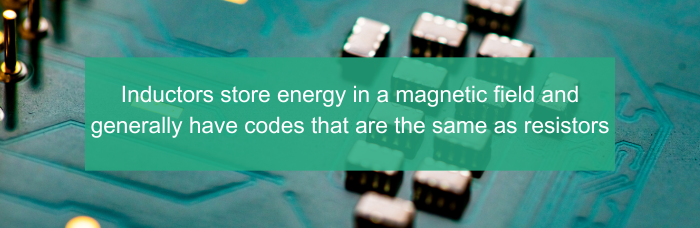

Inductors store energy in a magnetic field andgenerally have codes that are the same as resistors | PCBCart

Part 4: SMD Diodes and Triodes

Diodes, which allow current to flow in only one direction, are typically marked with a "D" or "CR," and often have a line indicating the cathode (negative) side. LEDs and Zener diodes are varieties each having a specific use. Triodes or transistors, labeled as "Q," are mostly used as amplifiers or switches in circuits. Transistor types are BJTs and FETs, which differ in their mode of operation and application range.

Part 5: SMD Integrated Circuits (ICs)

SMD ICs combine a number of electronic components like transistors and diodes into a single package. Identified by package type, e.g., QFP, BGA, or SOP, ICs perform complex functions from processing to memory storage.

Part 6: SMD Crystal Oscillators

These products output precise clock signals and are marked with their frequency, shown, for example, as "16 MHz" on the oscillator. Crystal oscillators set timing in microprocessors and digital circuits, essential to synchronizing in computer environments.

Identification Tools and Techniques

Magnification and Illumination: Enhances legibility of very small markings. Hand-held magnifiers or digital microscopes are a godsend, and proper illumination eliminates shadows that conceal markings.

Reference Sources: Employ complete SMD codebooks and websites to decode part markings. Database websites can easily translate codes to their respective values and specs.

Multimeters and Testers: Testing equipment like electrical multimeters are employed directly to test for illegible or unhelpful markings, value of resistance, capacitance, and inductance.

Cross-Referencing: Cross-reference component specs in datasheets, manufacturer material, and engineering forums where accuracy can be guaranteed during identification.

PCB Assembly & Components Sourcingwith PCBCart

PCB Assembly and SMD Components Sourcing with PCBCart

Partnering with a trustworthy service provider like PCBCart will simplify PCB assembly and SMD component sourcing:

Quality Assurance: We buy components in bulk directly from manufacturers to offer authentic and high-quality components.

Cost-Effectiveness: Leveraging its wide network of strategically located sourcing bases globally, PCBCart provides competitive prices to help you handle project budgets with ease.

Full-Service Solutions: Besides sourcing, PCBCart offers full assembly services, such as component mounting, whole PCBA testing, and end-product assembly, to ensure smooth progress from design conception to production.

Customer Support: Enjoy the confidence of a quality refund guarantee and avail yourself of our ability to provide sample lots before bulk orders to verify the quality of components.

To meet your trusted and efficient PCB assembly and component sourcing needs, we at PCBCart are available for you to order a quote from our site, benefiting from our experience, professionalism, as well as the quality assurance. Let us make your next project successful and showcase your electronic inventions to the world with perfection and excellence.
