Printed Circuit Boards (PCBs) are the backbone of all sorts of electronic devices, ranging from mobile phones to factory machines. PCBs are the technological backbone, much like the neural networks of biological organisms. It is necessary for electronics professionals to understand how to read a PCB. Reading a PCB enables them to troubleshoot efficiently, enables design improvement, and fosters innovation in developing electronic systems. This article will describe the vital skills needed to read a circuit board through deciphering symbols, tracking circuits, investigating intricate methodologies, and recognizing the macros essential in PCBs.
Macros of Printed Circuit Boards
Layers and Substrates
The reason why a PCB is unique is its intricateness in the manner of its build-up of material, where each layer has a role to play. The standard PCB comprises alternating layers of conductive copper and insulating substrates. The substrate is generally made of FR-4, a composite of woven fiberglass cloth and epoxy resin. The material is used for its good electrical insulation, mechanical strength, chemical, and moisture resistance. Depending on the applications, polyimide, being used for high-temperature use, or ceramic for high-frequency applications, is used.
The copper layers on a PCB are the route of the electrical signals. In a simple two-layer board, copper foils are bonded to either side of the substrate. In higher-level designs, multilayer boards are constructed by stacking additional copper and substrate layers. This allows for high-level circuit architecture. The copper layers carry electrical signals and power across the board.
The solder mask, typically green, is a thin ultra-skin coating of copper layers. It primarily exists to prevent unwanted contact between copper tracks and other metallic objects. This blocks solder bridges of close-spaced solder pads and protects the copper from oxidation as well. The silkscreen is the outside layer, typically white, and contains valuable data like component designators, polarity markers, and other reference pointers useful at assembly, test, and repair time.
Advanced PCBs can include special layers for added functionality. These can include embedded capacitance layers for improved power delivery or special ground planes that offer superior signal integrity and immunity to electromagnetic interference (EMI).
The Major Components of a PCB
Understanding the kind of electronic components that pack a PCB is vital to reading and interpreting boards quickly. Each component is a crucial part of the circuit design:
Resistors: Passive components that limit current flow, marked with colored bands for the value of resistance. Resistors are used in current limiting, voltage division, and biasing.
Capacitors: Devices that store and release electrical energy, available in different shapes and sizes. Capacitors are used in filtering, coupling, and decoupling circuits.
Inductors: Components that store energy in a magnetic field as current flows through them. Inductors are used in filters, oscillators, and power supplies.
Diodes: Allow current to travel in one direction alone. LEDs are used extensively as light indicators. Diodes can also be used as switches, voltage regulators, and rectifiers.
Transistors: Semiconducting devices which amplify or switch electronic signals. Used heavily in amplifiers and logic gates, and in bipolar junction transistors (BJTs) and field-effect transistors (FETs) forms.
Integrated Circuits (ICs): Advanced components with complete circuits in a single package, ranging from simple operational amplifiers to advanced microprocessors. ICs form the basis of modern electronics, doing a very wide variety of functions.
Each of these components has distinctive markings that set their specifications and values apart, crucial for reading schematics and assessing functionality within electronic systems.
Traces and Vias
Traces are the bread and butter of PCBs, conductive pathways that facilitate electrical signals to be passed from one component to the next. Knowing various traces and via types is crucial for reading layouts and successfully troubleshooting:
Signal Traces: Pass data signals between components, requiring careful routing to maintain signal integrity and not induce interference.
Power Traces: Power traces provide power from supply to components. Power traces are usually thicker than signal traces to carry heavier currents, reducing voltage drop and heat generation.

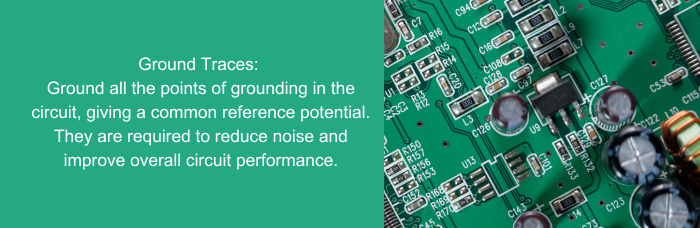

Ground Traces: Ground all the points of grounding in the circuit, giving a common reference potential. They are required to reduce noise and improve overall circuit performance.
In multi-layer PCBs, vias are employed to interconnect traces between layers. A via is a small hole filled with conductive material that enables electrical signals to pass between two layers. This facilitates effective routing connections between several layers without occupying additional board space.
Knowing the purpose and types of vias—through-hole, blind, and buried—is also necessary in interpreting circuit board layouts. Through-hole vias connect outer layers to inner layers, blind vias connect an outer layer to one or more inner layers but do not extend through the entire board, and buried vias connect only the inner layers.
Decoding Circuit Board Symbols
Component Markings and Values
Good reading of circuit boards is dependent on being able to read component marks and values:
Resistor Color Codes: Resistors typically use color bands to indicate their resistance value and tolerance. For example, a resistor with bands of brown, black, orange, and gold would have a value of 10,000 ohms (10k) and a tolerance of 5%.
Capacitor Markings: Capacitors most often have capacitance marked upon them in Farads (F), picofarads (pF), nanofarads (nF), or microfarads (μF).
Inductors: These most often have the inductance value marked upon them in microhenries (μH) or millihenries (mH).
Diodes and Transistors: These most often are marked with type designators or part numbers. Alphanumeric codes can be cross-referenced in datasheets to confirm their specifications.
Integrated Circuits (ICs): ICs have part numbers labeled on them describing the chip and function. Such labeling may include additional manufacturing date codes and lot numbers.
Reading such markings facilitates engineers and technicians to easily locate and test parts on a printed circuit board (PCB) for diagnosis and design.
Schematic symbols and PCB footprints, though representing the same components, serve different purposes. Schematic symbols are a standardized graphical representation employed on circuit diagrams and highlight the electrical function of the component and not its physical appearance.
PCB footprints, on the other hand, are the physical area and points of contact a component takes up on a printed circuit board. Footprints are accurate depictions of the component size, shape, and pin arrangement to facilitate correct placement and soldering in production.
The skill of translation from these schematic symbolic representations in the abstract to their physical counterparts on the PCB is priceless to engineers and technicians alike. It provides for instant shifting between conceptual design and its physical realization, optimizing both circuit analysis efficiency and the communication among design, fabrication, and assembly groups.
Silkscreen Annotations
Silkscreen annotations provide useful visual indicators for component location, orientation, and labeling on a PCB. The annotations are usually printed in clear color contrast, such as white or yellow, on the top surface of the PCB for legibility.
Component Outlines and Reference Designators: Alphanumeric identifiers (e.g., R1 for Resistor 1) aid in precise identification and positioning of components on assembly.
Polarity Indicators: Symbols or marks on the silkscreen show the correct orientation for polarized components, such as electrolytic capacitors or diodes.
Pin 1 Indicators: Dots or notches that indicate the first pin of integrated circuits or other multi-pin components ensure correct orientation on insertion.
Test Points: Special points on the board for probing during quality control or debugging.
With the knowledge and use of silkscreen information, technicians and engineers greatly benefit in terms of productivity while testing, assembling, and troubleshooting a PCB.
By learning to read a PCB, the person acquires the ability to understand and decipher the many layers, components, and symbols that go into the creation of these intricate boards. By learning to become familiar with the technique of reading circuit board layouts and deciphering silkscreen notations, you are opening yourself up to being able to innovate and streamline electronic system designs. Not only is this a priceless skill in the realm of repair and troubleshooting, but also a precursor to advancing technology and uses within the field of electronics. Regardless of whether you are an enthusiast, engineer, or technician, transforming this knowledge into a functional skill set will propel you to becoming an expert in the field of electronics.
In conclusion, PCB reading skill is an extremely useful one that opens numerous opportunities in electronics design, problem-solving, and creativity. The full appreciation of PCB layers, components, and symbols will greatly enhance your skill level when it comes to working with electronic systems for personal or business endeavors. With progress in your electronics projects, the next thing to do is bring ideas into realization. PCBCart offers high-quality PCB assembly services that are aimed at fulfilling high industry standards to deliver your projects with accuracy and precision. Getting a quote from PCBCart can lead to an understanding of how their skills and knowledge can aid and boost your electronic projects.
