Industry: Industrial
Key Capabilities: 3D Printing · AOI Optimization · Customized Fixture Design · Rapid Prototyping · Stability Engineering
Overview
Industrial control electronics often feature complex geometries that create instability on the assembly line and "blind spots" during automated inspection. PCBCart optimized the production of high-density industrial boards by introducing customized 3D-printed support structures and refined AOI (Automated Optical Inspection) programming, resulting in a significant reduction in rework and inspection gaps.
Background
Due to the non-uniform component distribution and irregular PCB shapes typical of industrial controllers, the product suffered from vibration during the Pick-and-Place and Reflow phases. This instability led to component shifting and soldering defects. Furthermore, the height of certain connectors created shadows during AOI, allowing potential defects to pass through undetected.
The Challenges
Inspection Gaps: AOI "blind spots" caused by tall components shadowing smaller SMD parts.
Mechanical Instability: Product "wobble" during high-speed assembly leading to misalignment.
High Defect Rates: Recurring solder bridges and tombstoning due to unstable support.
Urgent Implementation: The need for a solution that could be deployed without the long lead times of traditional CNC-machined fixtures.
Engineering Insight
Stability in the SMT line is the foundation of quality. When traditional "flat" support pins fail to secure an irregular board, customized "contour-matching" fixtures are required. By using 3D printing technology, we can create these complex geometries in hours rather than weeks, providing an immediate fix to mechanical vibration.
Optimization Strategy
3D-Printed Custom Fixtures: Engineered and printed high-temperature resistant fixtures that cradled the unique underside profile of the board, providing 100% stability.

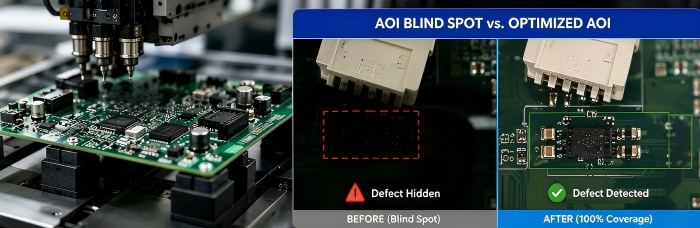

AOI Algorithm Optimization: Reprogrammed AOI inspection paths and adjusted camera angles/lighting intensities to "see around" tall components, eliminating shadows.
Integrated Functional Support: Designed fixtures that could transition from SMT assembly straight into functional testing, reducing handling risks.
Rapid Deployment Model: Utilized in-house additive manufacturing to iterate and deploy the final fixture design within 48 hours of identifying the stability issue.
Results
Zero Blind Spots: Achieved 100% inspection coverage, eliminating the need for manual secondary visual checks.
Defect Reduction: Virtually eliminated component shifting and rework caused by assembly instability.
Throughput Increase: Improved overall production efficiency by 25% due to reduced downtime and faster inspection cycles.
Flexibility: Demonstrated the ability to respond to complex industrial design challenges with rapid-turn tooling solutions.
