Industry: Consumer Electronics
Key Capabilities: Test Fixture Optimization · Lean Process Standardization · Workflow Management · Visual Quality Control
Overview
In high-volume consumer electronics manufacturing, the greatest risk to quality is often human error—specifically missed tests or product mix-ups. PCBCart optimized the testing environment for a high-volume client by redesigning the physical workspace and implementing standardized workflow controls. This lean approach ensured that 100% of units were tested and correctly categorized, with zero quality escapes over a 2-year period.
Background
During peak production periods, the client’s existing testing area became congested. The lack of clear physical segregation between "Un-tested," "Passed," and "Failed" units created a high risk of product mix-ups. Furthermore, the inefficient layout led to operator fatigue and occasional "missed tests," where units bypassed the functional validation stage entirely.
The Challenges
Operational Inefficiency: Poor workspace ergonomics leading to slow throughput.
Product Segregation Risks: High risk of defective units being accidentally mixed with shippable stock.
Process Ambiguity: Lack of clear visual cues for operators to follow.
Quality Escapes: Occasional reports of units arriving at the customer without functional test logs.
Engineering Insight
Quality is not just a technical metric; it is a byproduct of the environment. By applying 5S and Lean manufacturing principles to the testing station, we can build "Poka-Yoke" (error-proofing) directly into the physical workflow, making it physically impossible for an operator to skip a step or mix a product.
Optimization Strategy

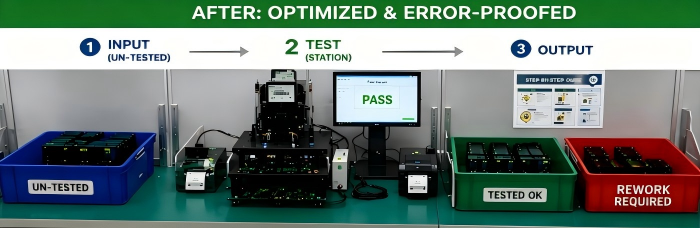

Redesigned Station Layout: Reconfigured the testing bench to follow a strict "Left-to-Right" flow (Input -> Test -> Output), with physical barriers between stages.
Standardized Segregation Trays: Introduced color-coded, labeled containers for "Tested OK" and "Rework Required," ensuring immediate visual identification.
Automated Labeling Integration: Linked the test fixture output directly to a label printer; a "Pass" label can only be generated once the fixture confirms a successful test result.
Enhanced Visual Management: Implemented clear signage and "Step-by-Step" visual guides at every station to standardize operator behavior.
Results
Zero Quality Escapes: Eliminated 100% of missed tests and product mix-up incidents.
Improved Efficiency: Optimized layout reduced operator movement, increasing units-per-hour (UPH) by 15%.
Long-Term Reliability: The system has been operational for over 2 years with a flawless track record.
Audit-Ready Process: The standardized workflow provided the client with full traceability and confidence during third-party quality audits.
