Industry: Telecommunications / High-End Consumer Electronics
Key Capabilities: ESD Protocol Engineering · Root Cause Analysis (RCA) · Functional Circuit Testing (FCT) · IPC-A-610 Class 3 Standards · Quality Management
Overview
Electrostatic Discharge (ESD) is a silent threat in the telecommunications industry, particularly for high-integration motherboards where interface components are highly susceptible to voltage spikes. A client approached PCBCart with a recurring 2% failure rate on their core motherboards during internal testing. Forensic analysis identified the root cause as chip "punch-through" defects caused by static accumulation at the interface capacitors. PCBCart re-engineered the entire production and testing environment, implementing a 360-degree ESD protection framework and taking over the full functional testing process. Within one year, the failure rate was eliminated, ensuring zero defects reached the client's facility.
Background
The client was manufacturing high-performance motherboards featuring sensitive communication chipsets. During their internal validation, they consistently observed a 2% failure rate. These failures were specific to the interface sections of the board. The client suspected that static charges were building up on the interface capacitors during manual handling, which subsequently discharged into the ICs, causing irreversible internal damage. They required a manufacturing partner with superior ESD controls and professional Functional Testing (FCT) capabilities to stabilize their product yield.
The Challenges
Latent Failure Risk: ESD damage is often non-catastrophic initially; a "weakened" chip might pass basic power tests but fail after several months of use in the field, compromising the client's brand reputation.
Interface Sensitivity: High-speed communication ports act as lightning rods for static discharge if not handled in a strictly controlled environment.
Process Inconsistency: The client's original production environment lacked real-time ESD monitoring and standardized operator behavior, leading to unpredictable quality spikes.
Cost of Defect: A 2% scrap rate on high-value telecom motherboards represented a significant financial loss and disrupted the client's supply chain planning.
Engineering Insight
ESD protection is not merely about equipment; it is a Systemic Discipline involving people, tools, materials, and environment. In an HMLV manufacturing scenario, the highest risk occurs during the physical transition between workstations. To solve this, we recognized that the FCT phase must be integrated into a "Zero-Potential" environment where the operator, the fixture, and the board are perfectly synchronized.

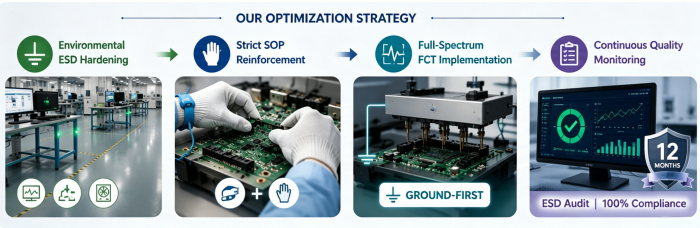

Optimization Strategy
Environmental ESD Hardening: PCBCart upgraded the production and testing zones with high-performance anti-static flooring, real-time grounding monitors for all benches, and localized ionizers to neutralize static charges in the air during the testing phase.
Strict SOP Reinforcement: We implemented a "Double-Layer" protection protocol. All operators are required to undergo specialized training and are mandated to wear both monitored anti-static wrist straps and conductive finger cots or gloves at all times when handling the boards.
Full-Spectrum FCT Implementation: PCBCart took over the comprehensive Functional Circuit Testing (FCT). We utilized custom-designed test fixtures that ensure a "Ground-First" connection, safely bleeding off any accumulated static charge before the signal pins engage the motherboard.
Continuous Quality Monitoring: Established a digital traceability log for ESD audits. One year into the program, we have maintained a flawless record of compliance and environmental stability.
Results
Zero-Defect Success: The previous 2% failure rate was successfully reduced to 0%.
Zero Field Recurrence: For over 12 consecutive months, the client has reported zero chip failures related to electrostatic discharge.
Enhanced Brand Trust: By delivering 100% functional, ESD-safe products, PCBCart has become the client's lead strategic partner for their next-generation communication hardware.
Improved ROI: Eliminating the 2% scrap rate significantly lowered the client's total cost of ownership and improved their production predictability.
