As global industries head towards more sustainability, the electronics sector is making big strides towards becoming green. One major move in that direction is the development of halogen-free PCBs (Printed Circuit Boards), designed to minimize environmental impacts through the use of toxic-free, halogen-free components. This detailed article explains what halogen-free PCBs are, why heading in the direction of such green alternatives is necessary, and how they will set the direction for electronics manufacturing in the future.
Understanding Halogen-Free PCBs

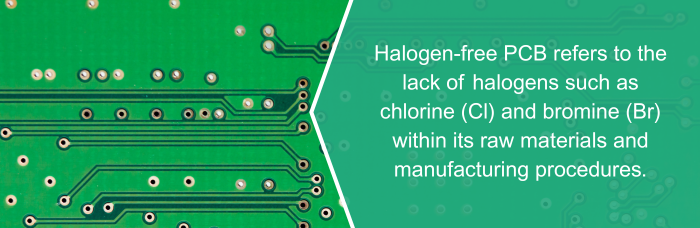

Halogen-free PCB refers to the lack of halogens such as chlorine (Cl) and bromine (Br) within its raw materials and manufacturing procedures. The measurement is achieved through a threshold of compliance of below 900 parts per million (ppm) of either chlorine or bromine or in total not more than 1500 ppm, according to international standards published by JPCA-ES-01-2003 alongside organizations such as IEC and UL.
The Case Against Halogens
Halogens have been utilized for so long in PCBs primarily because of their fire-retardant properties. When halogenated compounds decompose, however, as during combustion, they release poisonous byproducts such as dioxins and furans. These substances are extremely hazardous to health and also result in environmental contamination. As such, regulations like the Restriction of Hazardous Substances (RoHS) now prohibit hazardous substances such as polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE) in electronics. This regulatory landscape demands the implementation of safer, non-halogenated materials.
Properties and Advantages of Halogen-Free PCBs
Halogen-free PCBs utilize other flame-retarding materials such as phosphorus- and nitrogen-based compounds, with numerous advantages:
High Insulation and Low Water Absorption: The removal of halogens is an enhancement of insulation resistance and the minimization of water absorption, which enhances the board's performance and reliability in a variety of applications. It particularly qualifies them for high-frequency and high-power applications.
Effective Flame Retardance: The inclusion of phosphorus and nitrogen compounds adds effective flame-resistance, meeting UL safety standards with no release of toxic emissions when thermally degraded.
Thermal Stability: As in the case of thermal stability, these boards also offer excellent stability at high temperatures, which is vital for electronics exposed to routine heating processes, such as during soldering and when operated under extreme conditions. Their low thermal expansion coefficient allows them to maintain structural integrity when exposed to thermal stress.
Mechanical Strength: Halogen-free PCBs exhibit good mechanical properties with excellent peel and tensile strength. This characteristic grants them durability and resistance to mechanical stresses, thus being appropriate for extreme applications.
Environmental Compliance: Halogen-free PCBs comply with global environmental standards, aiding green manufacturing practices. This not only eases compliance with laws but also enhances marketability, as they are more appealing to environmentally aware consumers and businesses.
Challenges in Adopting Halogen-Free PCBs
Although the benefits are apparent, the use of halogen-free PCBs may be accompanied by some challenges:
Cost Implications: The cost of production of halogen-free PCBs may be more at the start due to novel materials and demands on altered manufacturing procedures. As demand rises and economies of scale are attained, these costs will decrease.
Material Differences: Designers will need to surmount challenges in adapting to the different dielectric and mechanical properties of halogen-free materials. Careful attention and design procedure modification must be observed to realize optimum performance.
Applications of Halogen-Free PCBs
Thanks to their green profile and performance benefits, halogen-free PCBs are used in a wide range of applications in many industries:
Automotive: The automotive sector with its strict safety and environmental standards demands advanced electronic systems like ADAS (Advanced Driver Assistance Systems) and infotainment, for which halogen-free PCBs are essential.
Consumer Electronics: These kinds of PCBs are prevalent in devices such as smartphones, tablets, and laptops, allowing them to meet e-waste regulations and aid recycling.
Medical Devices: In medical devices, safety is paramount. Halogen-free PCBs, as they are secure in material composition, are preferred in products requiring direct human contact, fostering patient and environmental safety.
Industrial and Power Applications: The high performance of Halogen-free PCBs under high temperature and stress conditions suits them for applications in industrial equipment, power systems, and telecommunication equipment.
The Future of PCB Manufacturing
The shift to halogen-free PCBs is also a component of a broader trend within the electronics industry to "go green." As the industry eliminates hazardous materials, the PCBs not only meet increasing regulatory demands but also enhance the environmental sustainability and safety levels of electronic products. The transition is facilitated by the advancement of technology and materials science, which continues to improve the performance and cost competitiveness of halogen-free substitutes.
For companies like PCBCart and industry giants, putting money in halogen-free technology is an enormous prospect. By adding such green initiatives, manufacturers will be at the frontier of technology, offering green, high-quality PCBs to different markets worldwide. As consumers remain increasingly aware of green electronics, the implementation of halogen-free PCBs is bound to become a standard, pushing the industry further towards sustainability.
In summary, halogen-free PCBs are a significant milestone in the history of electronics production. With their focus on environmental safety and compliance, these PCBs establish the benchmark for the industry's dedication to sustainable growth. With time and advancements in technology, halogen-free PCBs will remain at the forefront of manufacturing innovative, environmentally friendly electronic products and ushering in a cleaner future for generations to come.
We at PCBCart, aim to be leaders in green PCB solutions. Our commitment to quality and sustainability makes us a trustworthy business partner for clients seeking halogen-free PCBs. Through the use of innovative manufacturing technologies and focus on compliance with international standards, PCBCart offers high-quality, eco-friendly PCBs that meet the diverse needs of modern electronic markets. We encourage you to browse our products and consider how our halogen-free PCB solutions will be the perfect fit for your products. Reach out to us today to request a quote and discover how PCBCart can help drive your journey to sustainable electronic manufacturing.
