A modern vehicle's electrical architecture contains upward of 150 ECUs and over 1 km of wiring harness. A single solder joint failure in an ABS module or ADAS perception unit can cascade into a safety-critical event. That reality makes automotive PCBA the most demanding segment in contract electronics manufacturing — and it is precisely why IATF 16949 exists as the defining quality management standard for the industry.
Why Automotive Electronics Demand the Strictest QMS on the Planet
IPC-A-610 Class 3 sets the baseline for high-reliability electronics. Automotive OEMs go further. They operate under:
Operating temperature cycles: −40 °C to +125 °C (underhood), sustained across 15+ years of service life
Vibration loads: 20–2000 Hz random profiles per ISO 16750-3
Field DPPM targets: ≤ 10 DPPM for Tier-1 safety systems — orders of magnitude tighter than consumer or industrial electronics
IATF 16949:2016 is the automotive sector's quality management system standard, derived from ISO 9001 and augmented with Customer-Specific Requirements (CSRs) from OEMs including GM, Ford, Stellantis, BMW, and Volkswagen. The closed-loop quality architecture it mandates is built on five core methodologies — not as documentation exercises, but as live manufacturing controls embedded on the shop floor.
The Five Core Tools of IATF 16949 — Mapped to PCBA Risk
1. APQP — Advanced Product Quality Planning
Risk it prevents: Design-for-manufacturability gaps that become defect sources at SOP.
APQP launches before the first stencil print. During Phase 2 (Product Design & Development), our engineering team conducts DFM/DFA reviews against IPC-7711/7721 and IPC-2221B, flagging insufficient solder mask expansion, tombstoning-prone 0201 pad geometries, and BGA ball pitch below 0.4 mm that require AOI supplementation with offline X-ray. Pad geometry violations caught in APQP cost zero dollars. Caught post-SOP, they cost rework labor, scrap, and supplier escapes.
2. PPAP — Production Part Approval Process
Risk it prevents: Unvalidated process capability releasing non-conforming assemblies to customers.
PPAP Level 3 submission for automotive PCBA requires a minimum Cpk ≥ 1.67 on all critical-to-quality (CTQ) parameters: solder paste volume (target: 100% ± 15% of nominal), component placement accuracy (≤ ±50 µm X/Y), and reflow peak temperature (SAC305 Tm = 217 °C, target Liquidus +20–30 °C, i.e., 237–247 °C). Until PPAP is approved, no production shipments leave the building.
3. FMEA — Failure Mode and Effects Analysis
Risk it prevents: Uncontrolled process variables with high Severity × Occurrence × Detection (SOD) Risk Priority Numbers.
Process FMEA (PFMEA) for SMT lines targets solder-related failure modes: insufficient paste (opens), excess paste (bridging), tombstoning (reflow ΔT imbalance), and BGA head-in-pillow defects (warpage > 0.3 mm/50 mm board span). Any RPN ≥ 100 triggers a mandatory corrective action before SOP. BGA voiding — driven by flux outgassing during reflow — is flagged with the control response: offline X-ray void measurement, IPC-7095C Class 3 void acceptance criterion (< 25% area per ball).
4. MSA — Measurement System Analysis
Risk it prevents: Inspection equipment that cannot reliably discriminate conforming from non-conforming assemblies.
Before any inspection tool enters production, it must pass Gauge Repeatability & Reproducibility (GRR) analysis. Our 3D SPI systems must demonstrate GRR < 10% of total tolerance for solder paste height and volume measurement. Our 3D AOI systems undergo attribute GRR studies with golden samples (known-good, known-bad), targeting Cohen's Kappa κ > 0.9 — indicating near-perfect inter-rater agreement between operators and machine. An inspection system that cannot distinguish a 0.05 mm tombstone gap from a good joint is operationally blind.
5. SPC — Statistical Process Control
Risk it prevents: Process drift that erodes quality margins before a defect is produced.
SPC is not a reporting tool — it is a real-time intervention mechanism. Control charts run continuously on CTQ variables across every production run. When a data point approaches a control limit (±3σ), the MES triggers an automatic process hold pending engineer disposition. SPC is the feedback signal; the 3D SPI system is the sensor.
3D SPI Closed-Loop Feedback: Enforcing SPC on Solder Paste in Real Time
Solder paste deposition is the most statistically significant PCBA defect driver. Industry data consistently shows that 60–70% of SMT defects trace back to paste printing variation. Our 3D SPI architecture eliminates this as an uncontrolled variable.

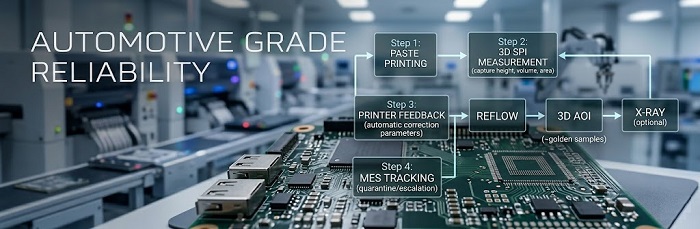

How the Closed-Loop Works
Measurement: Post-printer 3D SPI captures height (µm), area (mm²), and volume (mm³) for every deposit on every pad — 100% inline, not sampled.
CTQ thresholds:
| Parameter | LCL | UCL | Reference |
| Paste volume | 85% of nominal | 115% of nominal | Tighter than IPC-7525B Tier 2 |
| Paste height | — | Stencil thickness + 20 µm | Internal process spec |
| Pad coverage | > 80% (open risk) | < 120% (bridge pre-alert) | — |
Feedback to printer: When Xbar-R charts detect a trend — three consecutive points trending toward a control limit — the SPI system pushes a correction command directly to the stencil printer's servo system: squeegee pressure adjustment (±0.1 kg resolution), print speed (±5 mm/s increments), or separation speed. No human intervention required for minor drift correction.
Escalation: Out-of-control conditions (point beyond ±3σ, or 8 consecutive points same side of centerline) trigger a machine stop and engineer alert via MES. The board is quarantined, the stencil is inspected for clogging, and paste rheology is re-tested per J-STD-005 (viscosity, slump, tack).
This closed-loop eliminates the traditional "print–inspect–manually-adjust" cycle that introduces operator-to-operator variation and lag time. Solder paste volume Cpk runs consistently above 1.67 across our SMT lines.
Capability Comparison: PCBCart vs. Industry Baseline
| Quality Control Point | Industry Baseline | PCBCart Standard |
| Paste inspection | 2D SPI, sampled | 3D SPI, 100% inline + closed-loop auto-feedback |
| BGA inspection | AOI (bottom-side blind) | 3D AOI + offline X-ray void analysis (IPC-7095C) |
| Traceability granularity | Lot-level | Per-board UID + per-reel component tracking |
| Through-hole / mixed-assembly soldering | Standard wave | Automated selective wave (N₂ protection, programmable nozzles) |
| Board marking | Adhesive label | Laser-marked SN — no delamination risk |
Automated Selective Wave Soldering: The Mixed-Assembly Differentiator
Automotive connectors, power modules, and relay driver boards are typically mixed SMT + THT assemblies — precisely where many EMS providers fall short. Standard wave soldering cannot achieve selective joint coverage on high-density mixed boards; masking fixtures are costly and introduce manual process variation.
Our automated selective wave soldering system delivers controlled process parameters at each joint:
N₂ atmosphere: O₂ concentration < 50 ppm in the solder zone, suppressing oxidation and improving joint surface quality and long-term reliability
Programmable nozzles: Solder path defined precisely against PCB layout — adjacent SMT components receive no thermal shock
Full process traceability: Preheat temperature, solder temperature, conveyor speed, and N₂ flow rate are all recorded to the MES and linked to the per-board UID
The PFMEA for selective wave soldering carries dedicated failure mode entries: solder bridging (nozzle offset), cold joint (insufficient preheat), and solder spike (excessive separation speed) — each with a defined SPC control response.
MES UID Traceability: Component Reel to Laser-Marked Serial Number
An automotive PCBA without full manufacturing genealogy traceability is uninvestigatable in a field return scenario. Our MES enforces component-to-board traceability at every process step.
The Traceability Chain
Incoming Quality Control (IQC): Every component reel is scanned at goods receipt. The MES assigns a Lot ID linked to supplier CoC, date code, quantity, and IQC inspection result (dimensional, solderability per J-STD-002, X-ray per AEC-Q200 sampling plan where applicable). Non-conforming lots are quarantined under MES lock — they cannot be released to the shop floor without Quality disposition.
SMT Placement: Each pick-and-place machine verifies the feeder barcode before the first placement. The MES records: component reference designator, Lot ID, feeder position, and placement timestamp for every component on every board. Feeder misloads are rejected before they reach the PCB.
Reflow and Inspection: Time-temperature profile data — ramp rate, TAL (Time Above Liquidus), peak temperature, cooling rate — is recorded per board. 3D AOI results (pass/fail per pad, coordinate-referenced defect images) are stored in the MES against the board UID.
Offline X-Ray: BGA and QFN packages undergo sampling or 100% X-ray per the PFMEA control plan, with void analysis per IPC-7095C. X-ray images and void percentage measurements are archived against the board UID.

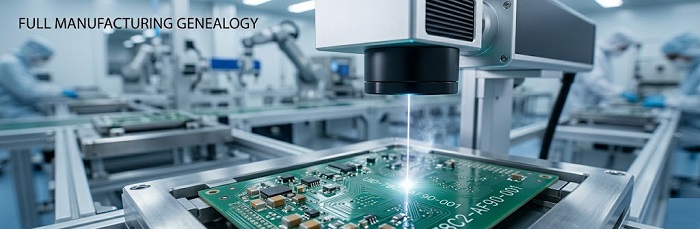

Laser Marking: At end-of-line, a CO₂ or fiber laser engraves the unique serial number (UID) directly onto the PCB substrate or conformal coating — no label adhesion risk. The MES links this UID to the complete manufacturing genealogy: every component lot, every process parameter, every inspection result.
In a field return event, scanning the laser-marked UID retrieves the full production history in under 60 seconds.
Zero-Defect Protocol Applied Beyond Automotive
IATF 16949's five-tool QMS was architected for functional safety in automotive environments. It translates directly to any application where a field failure carries disproportionate consequence.
Our automotive-grade protocols — PPAP-driven process qualification, 3D SPI closed-loop SPC, 100% 3D AOI, offline X-ray void analysis, and MES genealogy traceability — are applied as standard to:
Industrial power electronics: High-current BMS and inverter control boards where thermal cycling life ≥ 20 years is specified
GNSS and RF telemetry modules: Where BGA solder joint integrity directly affects link reliability
Defense and avionics adjacents: Where IPC-A-610 Class 3 is table stakes but customers require automotive-equivalent process documentation
We do not operate a tiered quality system. There is no reduced QMS for "less critical" programs. The same process controls that prevent a brake ECU escape prevent a field failure in a grid-edge energy storage controller.
Automotive-grade reliability. No exceptions by program type.
Ready to Evaluate a Supplier?
PCBCart (General Circuits) is IATF 16949 certified, specializing in High-Mix Low-Volume (HMLV) PCBA for automotive and high-reliability electronics. Bare-board substrates are sourced from qualified Tier-1 global fabricators and subjected to rigorous IQC before assembly begins on our controlled production lines.
We offer:
First-article DFM/DFA review — typically within 48 hours
PPAP planning and Cpk study support
Process feasibility assessment for BGA, QFN, and mixed-assembly boards
→ Contact our engineering team to begin evaluation
Note: Cpk, GRR, and DPPM figures in this article reference industry standard benchmark values (PPAP Level 3 / IPC / AIAG MSA Manual). Actual process control parameters for your program will be established jointly during APQP and documented with measured data in the PPAP submission.
