PCB manufacturing lead time depends mainly on three things: whether you're ordering a prototype or a standard production run, how complex the board is — layer count, tolerances, special materials — and whether you've chosen expedited service. Lead time is counted from the working day after payment and file confirmation; weekends and holidays don't count toward it.

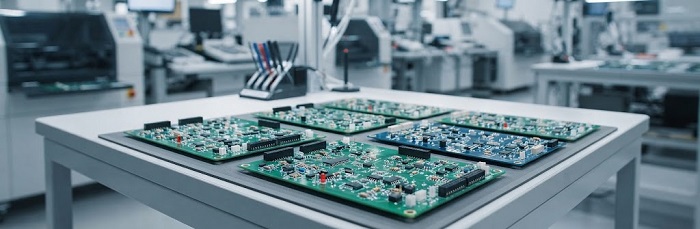

How Long Does Standard PCB Manufacturing Take?
Turnaround for a standard order typically runs 7-12 working days, with prototype quantities usually ready faster, in about 5-7 working days. Larger or more complex orders tend to land toward the longer end of that range. For a closer estimate on your exact specs, see the Standard PCB page.

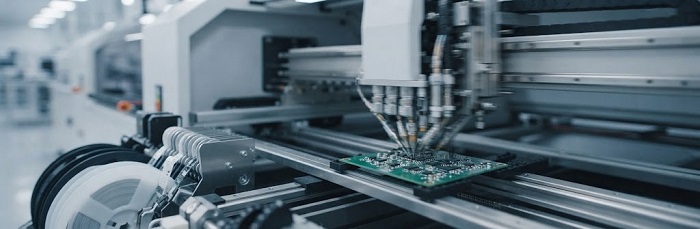

How Fast Can Expedited (Quick-Turn) Service Go?
When schedules are tight, expedited service can start from as little as 48 hours, with a rush fee applied — some rush orders are completed in 2-3 working days. Going faster doesn't mean cutting corners: expedited orders go through the same DFM and inspection steps as standard ones, just on a compressed schedule.
What Actually Adds Time to an Order?
• More layers or a more complex stackup mean more lamination and inspection cycles
• Non-standard materials or tight tolerances usually need extra planning before production starts
• A design that fails DFM the first time adds a review-and-resubmit cycle before fabrication can begin
• Missing specs at quoting stage — thickness, copper weight, finish — can delay confirmation before lead time even starts counting
Two things reliably prevent delays that don't show up in a quoted lead time: running a free DFM check before you submit, and having your specs ready with the pre-order checklist.

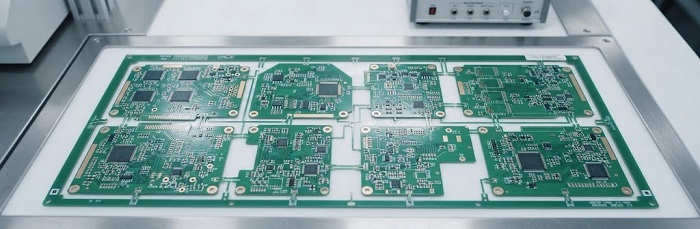

Does Lead Time Work Differently for HMLV / Multi-Design Orders?
Yes. A High-Mix Low-Volume order with several different designs isn't the same as a single large production run. Each design on a mixed panel still needs its own DFM pass, tooling setup, and inspection record, so turnaround depends on how many distinct designs are in the batch — not just the total board count. It's worth confirming directly with your account manager when quoting a mixed-design order, since it won't reduce to a single lead-time number the way a single-design run does.
What About Shipping Time After Fabrication?
Fabrication lead time doesn't include shipping. Delivery typically takes about 3-5 days once boards leave the factory, with Express, Air, or Ocean Freight options depending on order size and urgency — see the shipping guide for details on choosing between them.
FAQ
Can I speed up a PCB order that's already been placed?
It depends on where the order is in production — expedited service is easiest to apply before an order starts fabrication. Contact PCBCart directly to check whether an in-progress order can still be rushed.
Does a more complex board always mean a longer lead time?
Generally yes — more layers, tighter tolerances, or non-standard materials add process steps, which adds time. But the biggest avoidable delays usually come from incomplete files or specs at quoting stage, not the board's inherent complexity.
Is prototype lead time always shorter than production lead time?
Usually — prototype runs are set up for fast turnaround on small quantities. But a highly complex prototype — high layer count, tight tolerances — can still take longer than a simple standard-quantity board.
