Of all the processes involved in electronics manufacturing, two are unavoidable: box build assembly and PCB assembly. While both are part of the manufacturing of electronic products we consume daily, they are different in their roles and operations. It is highly essential to know the differences between these two processes for manufacturers and engineers who aim to optimize production for various electronic systems. Let us go through each process, outline their key elements, and know under what circumstances each is applied, pointing out the reason why both are vital in current manufacturing.

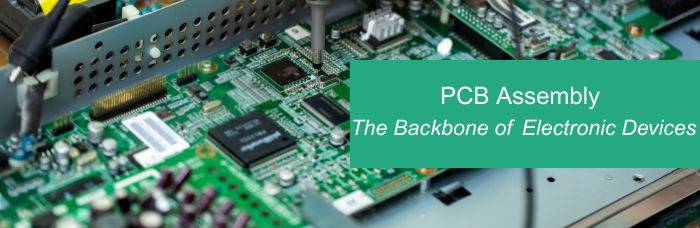

PCB Assembly: The Backbone of Electronic Devices
Being the core of all electronic devices, the Printed Circuit Board is the central point that enables electrical potential, connecting various components for seamless functioning. The process of mounting electronic components on a PCB is called PCB assembly. A component may be placed on the board surface using Surface Mount Technology (SMT) or soldered on the opposite side using Through-Hole Technology (THT), which involves threading component leads through holes in the board.
Important Procedures for PCB Assembly
Applying Solder Paste: The PCB pads are coated with a specially made solder paste. Components are held in place using this temporary glue.
Placement of Components: Accurate devices affix resistors, capacitors, and microchips to the board.
Reflow Soldering: The board is passed through a reflow oven, where the solder paste melts, strongly holding components on the board.
Quality Control: Each board undergoes rigorous testing—through techniques like Automated Optical Inspection (AOI) and X-ray inspection—to ensure that it is in its optimal performance level.
Component Types:
Active Components: Transistors and integrated circuits like devices that control electricity flow, acting as the brains of the board.
Passive Components: Resistors and capacitors like devices, which play supporting roles without needing a power source themselves.
Applications: PCB assemblies are utilized in a wide range of industries—ranging from consumer electronics like smartphones and tablets to mission-critical applications like medical devices and automotive systems—because they are precise and dependable.
Box Build Assembly: The Holistic Approach
Box build assembly goes beyond the activities of PCB assembly, which in this instance pertains to the complex process of bringing the PCB together into a completed electronic product. This encompasses anything beyond mere attachment of the circuit board, such as wire and cable assembly, enclosures, and in some instances, add-ons like screens or interfaces. Box build assembly essentially converts a circuit board into an operational, ready-to-use product.
Key Components of Box Build Assembly:
System Integration: Assembling the assembled PCB with other components, such as sensors and power supplies, to form an operational system.
Mechanical Assembly: Installing the PCB into a housing or case, possibly involving mechanical components like brackets, fans, or displays.
Cable and Wiring Installation: Routing and planning cables carefully to ensure effective power and signal transmission.
Final Testing: Conducting system-level testing to make sure the whole product operates flawlessly, including functional and environmental stress testing.

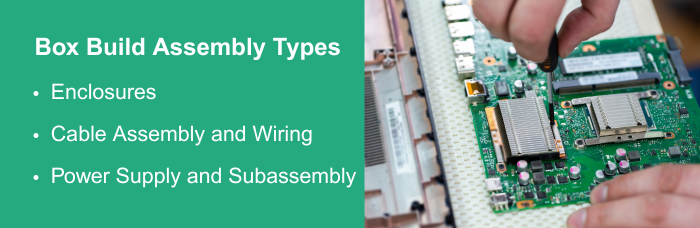

Component Types:
Cable Assemblies and Wiring: Ensuring all internal and external connections are stable and well organized.
Enclosures: Specialized housings that contain internal components but allow necessary interaction with the outside environment.
Power Supplies and Subassemblies: Crucial components that provide the necessary power and functionality for the whole system.
Applications: Box build assemblies are required for those products that require integration of multiple systems, for instance, telecommunications, industrial machinery, and consumer electronics requiring electronic as well as mechanical assembly.
Main Differences Between PCB and Box Build Assembly
Although both processes are part and parcel of electronics production, their application and methodology are quite distinct:
Scope and Complexity:
PCB Assembly is to develop the circuit board, the backbone of any electronic product.
Box Build Assembly is done for full system integration to provide a market-ready product.
Materials and Components:
PCB Assembly primarily operates with electronic components like resistors and integrated circuits.
Box Build Assembly deals with a range of components from enclosures to cable assemblies.
Testing and Quality Control:
Testing of PCB Assembly is targeted towards the board itself, employing techniques like AOI to ensure correct electrical functionality.
Box Build Assembly involves extensive testing at the system level, verifying the integration of all components.
Skills Required:
PCB Assembly requires precision component placement and soldering skills.
Box Build Assembly demands a broader range of skills including system integration, mechanical assembly, and cable management.
Final Product:
PCB Assembly produces an operational circuit board that is the brain of a device.
Box Build Assembly offers a finished product suitable for industrial consumption or consumer usage.
When to Choose Each Process
PCB Assembly is required at the initial product development stages—especially in the case of prototyping and ensuring basic electronic function of a device. It is ideal for companies worried about rudimentary circuit capability without complex enclosures or outside systems.
Box Build Assembly is however necessary in terminal-stage production when the product demands other pieces including housings, wiring, and power supplies. This is applicable more directly in sophisticated systems found in telecommunication, automotive, aerospace, and industrial usage applications where deeply integrated solutions are top priority.
PCB assembly and box build assembly, although carrying out different stages and necessitating different procedures, are both crucial in the manufacturing process of electronic devices. Identifying their differences in scope, complexity, and use is important for effective manufacturing decisions. By choosing between or between integrating these processes in terms of specific product needs, manufacturers can ensure efficient production and quality output, ultimately transforming innovative designs into fully functional devices ready for the market. In this way, both PCB and box build assemblies collectively contribute to the rapid development and application of technology in every aspect of modern life.
