Engineering vs Procurement: Aligning Technical & Commercial Criteria When Selecting an HMLV EMS Partner

For high-mix, low-volume (HMLV) PCBA sourcing decisions, engineering and procurement teams frequently arrive at different answers when evaluating the same contract manufacturer shortlist. Neither team is wrong — they're optimizing for different failure modes. The result, absent a shared framework, is either a supplier selection that satisfies procurement's cost targets and creates downstream engineering rework, or one that satisfies engineering's process comfort while missing commercial discipline. This gap is especially pronounced in HMLV environments, where frequent design changes, mixed-technology builds, and low per-batch volumes make both technical responsiveness and commercial flexibility simultaneously critical.

Where the Two Functions Diverge

Engineering's Evaluation Lens

Engineering teams typically weight selection criteria around process capability and risk exposure:

DFM turnaround and depth — how quickly and how thoroughly a supplier reviews a design for manufacturability issues before quoting, not just before build. [[INTERNAL LINK: DFM checklist article — anchor TBD from body text]]

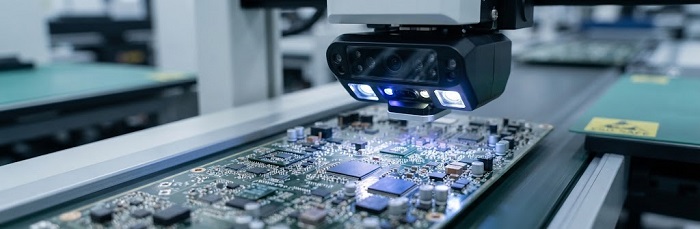

Inspection coverage — whether SPI, AOI, and X-ray are used as closed-loop process controls or only as final QC checkpoints

Process capability for the specific build — fine-pitch placement, mixed SMT/THT, warpage-sensitive substrates, or components requiring controlled-atmosphere soldering processes

Traceability infrastructure — whether MES-level UID tracking and marking exist as standard practice or as a quoted add-on

Engineering responsiveness during NPI — how ECOs, first-article issues, and design queries are handled in practice, not just in a capability slide [[INTERNAL LINK: NPI process article — anchor TBD]]

Procurement's Evaluation Lens

Procurement's scorecard, by contrast, centers on commercial predictability:

Unit price and quoted cost breakdown — component sourcing markup, NRE/tooling charges, and labor rate transparency

Payment terms — net terms, deposit structure, and currency/exchange exposure for cross-border suppliers

Lead time stability — not just the quoted lead time, but variance against quoted lead time across past POs

Order flexibility — minimum order quantities, ability to accommodate frequent small-batch reorders typical of HMLV programs

Total cost of ownership — freight, duties, and the cost of quality escapes factored against unit price

Neither list is inherently more "correct." The friction arises because these criteria are rarely scored on the same matrix, so the two functions end up debating different suppliers for different reasons instead of debating the same suppliers on shared terms.

A Common Conflict Scenario

A representative (illustrative, not client-specific) pattern looks like this:

Supplier A quotes 12–15% below the shortlist average. Procurement flags it as the preferred option on unit economics. Engineering later finds that DFM feedback is generic, inspection is limited to final AOI with no SPI stage, and design queries during NPI take multiple business days to resolve — pushing the program's actual timeline past what the lower unit price was meant to protect.

Supplier B quotes at or slightly above shortlist average but responds to DFM queries within a defined engineering review cycle, runs SPI and AOI as in-line process controls rather than end-of-line sampling, and has MES-based traceability already built into standard workflow rather than as a paid option.

Scored on price alone, Supplier A wins. Scored on process capability alone, Supplier B wins. The reason a joint scorecard changes the outcome is that it converts each gap into a cost: a missing SPI stage translates into a higher probability of undetected placement defects reaching final test, and slow DFM turnaround translates into added NPI cycle time — both of which have a cost even if that cost doesn't appear on the unit-price line. Scored on that combined basis, the picture usually looks different from either single-axis view.

A Shared Evaluation Scorecard Framework

The goal isn't to average technical and commercial scores into a meaningless composite — it's to weight both axes explicitly and make the tradeoff visible before the PO is placed, not after the first NPI cycle.

Structure

"Lead" means the function is primarily responsible for scoring that line item based on its domain expertise — both functions review the complete scorecard and can flag disagreement on any line before it's finalized.

Weights should be set jointly, before suppliers are scored, and held constant across that evaluation round — not adjusted afterward to justify a preferred outcome. A different weighting can be agreed for a later program phase (e.g., sustaining production vs. NPI), but that is a new evaluation round with its own upfront agreement, not a mid-round change.

Scoring and Weighted Total

Use a consistent 1–5 scale per line item, with written criteria for each score level (avoid vague "good/bad" scoring)

Calculate each supplier's weighted total as: Weighted Score = Σ (item score × category weight), so a supplier scoring 4/5 on a 25%-weighted category contributes 1.0 to the total, versus 0.6 from a 3/5 score on a 20%-weighted category — making the tradeoff arithmetic explicit rather than left to discussion

Require both functions to score the same supplier list — not separately compiled shortlists

Document scoring rationale, not just the number, so disagreements can be resolved by reviewing evidence rather than opinion

Aligning at the RFQ Stage

Most misalignment isn't a scoring problem — it's a questions problem. If procurement's RFQ only asks for unit price and lead time, and engineering's technical questionnaire is issued separately (or not at all), suppliers respond to each function differently and neither side gets a comparable dataset. Aligning at the RFQ stage means issuing one document with both technical and commercial questions, answered by the supplier in a single structured response.

Questions worth standardizing across both functions:

What is the DFM review process, and what is the typical turnaround from DFM feedback to quote finalization?

Which inspection stages are inline/closed-loop (e.g., SPI and AOI feeding back into process adjustment) versus end-of-line sampling only?

Is component-level or board-level traceability standard, or a quoted add-on?

What is the variance between quoted and actual lead time on the last several comparable programs (ask for evidence, not just a claim)?

What is the minimum order quantity for reorders, and how is pricing structured for frequent small-batch releases typical of HMLV programs?

What quality management certifications does the facility hold, and — just as important — which relevant certifications does it not hold? A supplier should state this directly rather than leave scope ambiguous.

Asking these jointly, at RFQ, prevents the common failure mode where engineering discovers a process gap during first-article build — after commercial terms are already locked.

Using the Scorecard in Practice

A functional scorecard should be treated as a living document across the supplier relationship, not a one-time selection artifact:

Pre-RFQ — Engineering and procurement jointly set category weights based on program phase and risk profile

RFQ response scoring — Both functions score the same supplier set against the same document and calculate the weighted total

Post-award tracking — Revisit actual performance (lead time variance, DFM cycle times, quality escapes) against the scorecard predictions to calibrate future weighting

This turns supplier selection from a one-time negotiation into a repeatable, auditable process — which matters more, not less, in HMLV environments where the same supplier relationship will be evaluated repeatedly across many small, frequently-changing builds rather than a single large qualification event.
